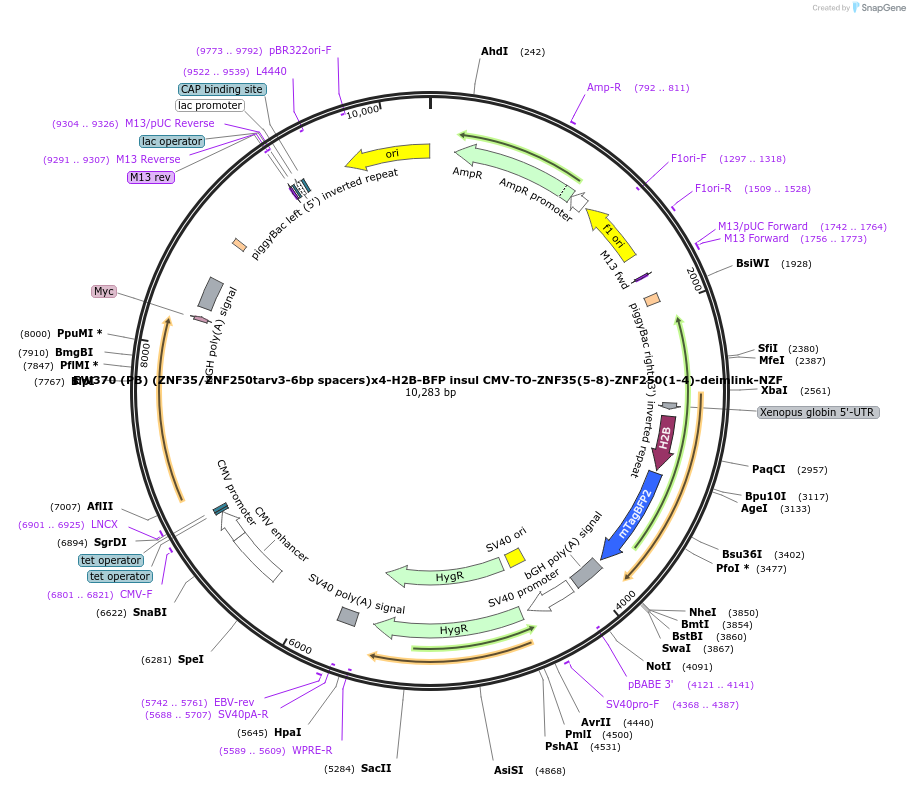

EW370 (PB) (ZNF35/ZNF250tarv3-6bp spacers)x4-H2B-BFP insul CMV-TO-ZNF35(5-8)-ZNF250(1-4)-deimlink-NZF
(Plasmid #236172)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 236172 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    piggyBac
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    ZNF35(5-8)-ZNF250(1-4)-deImmunLink-NZF
  • Species
    Synthetic
  • Promoter CMV

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    H2B
  • Species
    H. sapiens (human)
  • Entrez Gene
    H2BC11 (a.k.a. H2B/r, H2BFR, H2BJ, HIST1H2BJ)
  • Promoter four ZNF35/ZNF250 sites
  • Tag / Fusion Protein
    • mTagBFP2 (C terminal on insert)

Cloning Information for Gene/Insert 2

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    EW370 (PB) (ZNF35/ZNF250tarv3-6bp spacers)x4-H2B-BFP insul CMV-TO-ZNF35(5-8)-ZNF250(1-4)-deimlink-NZF was a gift from Xiaojing Gao (Addgene plasmid # 236172 ; http://n2t.net/addgene:236172 ; RRID:Addgene_236172)

  • For your References section:

    Machine-Guided Dual-Objective Protein Engineering for Deimmunization and Therapeutic Functions. Wolfsberg E, Paul J-P, Tycko J, Chen B, Bassik MC, Bintu L, Alizadeh AA, Gao XJ. bioRxiv 2025.02.24.639918 10.1101/2025.02.24.639918
