pCR4_miniFXN_7
(Plasmid
#234360)
-
PurposeMini FXN plasmid with a partial deletion of the 5' UTR and intron 1 in FXN. Does not contain GAA repeats.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 234360 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

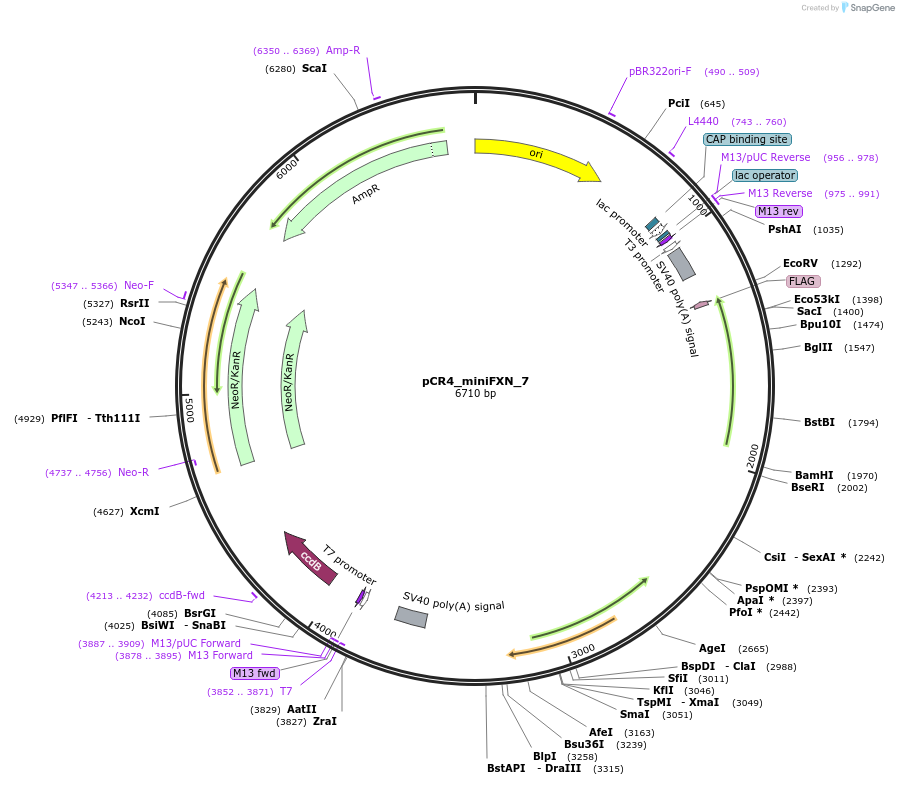

Backbone
-
Vector backbonepCR4
- Backbone size w/o insert (bp) 4000
- Total vector size (bp) 6710
-
Vector typeCloning
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameFXN
-
Alt namefrataxin
-
Alt nameX25
-
Alt nameFRDA GENE
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2224
-
MutationThere is a partial deletion in the 5'UTR of FXN, insert only contains 429 bp of the 5'UTR. There is a partial deletion in intron 1 of FXN, insert only contains 1165 bp of intron 1. 9272 bp of FXN intron 1 was deleted. First 1108 bp of intron 1 retained. Last 57 bp of intron 1 retained.
-
Entrez GeneFXN (a.k.a. CyaY, FA, FARR, FRDA, X25)
-
Tag
/ Fusion Protein
- Flag Tag (C terminal on insert)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCR4_miniFXN_7 was a gift from Marek Napierala (Addgene plasmid # 234360 ; http://n2t.net/addgene:234360 ; RRID:Addgene_234360) -
For your References section:
Defining Transcription Regulatory Elements in the Human Frataxin Gene: Implications for Gene Therapy. Li J, Li Y, Wang J, Gonzalez TJ, Asokan A, Napierala JS, Napierala M. Hum Gene Ther. 2020 Aug;31(15-16):839-851. doi: 10.1089/hum.2020.053. Epub 2020 Jul 13. 10.1089/hum.2020.053 PubMed 32527155
