pJEC780
(Plasmid #234349)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 234349 Standard format: Plasmid sent in bacteria as agar stab 1 $85

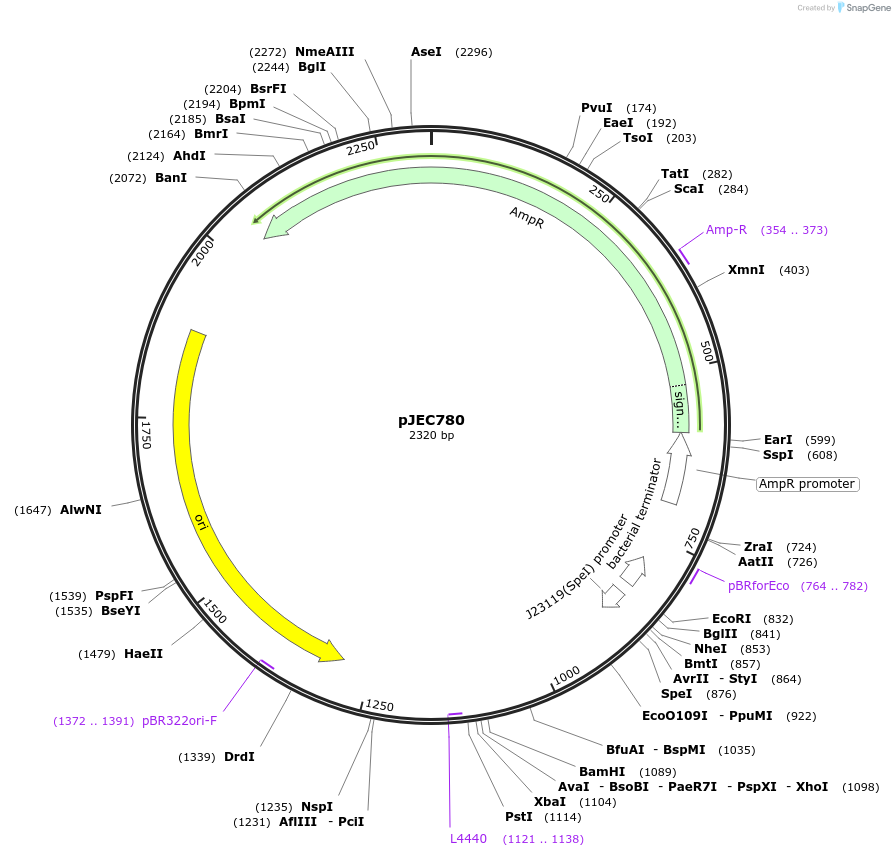

Backbone

  • Vector backbone
    ColE1
  • Backbone size w/o insert (bp) 2078
  • Total vector size (bp) 2320
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Synthetic RNA target for RENDR
  • Species
    Synthetic
  • Insert Size (bp)
    1088
  • Promoter PJ23119

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJEC780 was a gift from James Chappell (Addgene plasmid # 234349 ; http://n2t.net/addgene:234349 ; RRID:Addgene_234349)
  • For your References section:

    A split ribozyme that links detection of a native RNA to orthogonal protein outputs. Gambill L, Staubus A, Mo KW, Ameruoso A, Chappell J. Nat Commun. 2023 Feb 1;14(1):543. doi: 10.1038/s41467-023-36073-3. 10.1038/s41467-023-36073-3 PubMed 36725852
