pAIP4_1EW4
(Plasmid #234180)

Print

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 234180 Standard format: Plasmid sent in bacteria as agar stab 1 $85 *
Add to Cart

* Log in to view industry pricing.

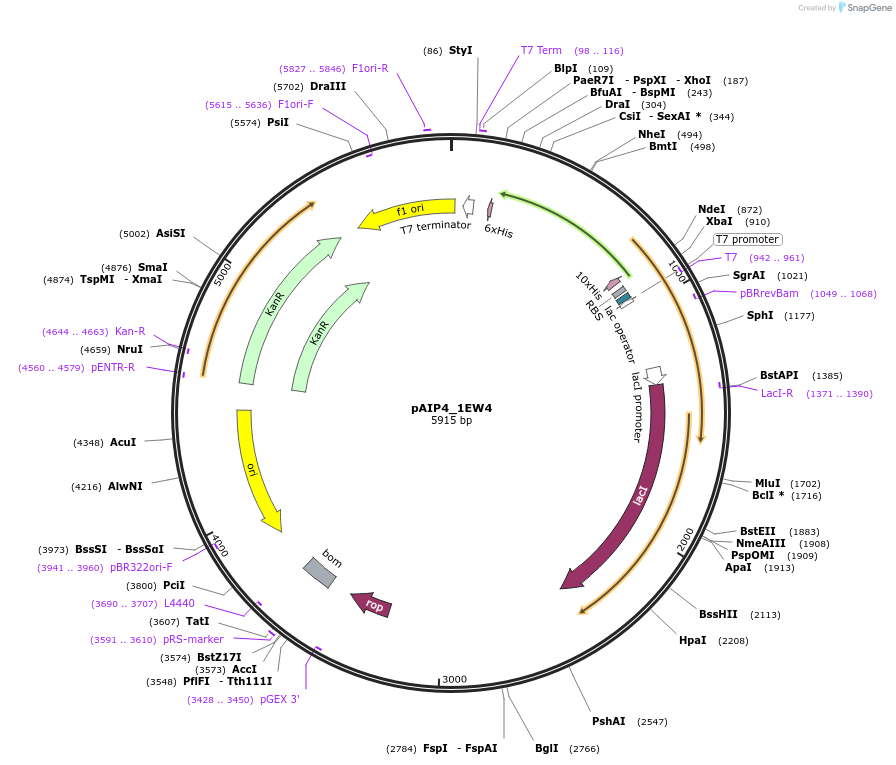

Backbone

  • Vector backbone
    pET29b
  • Backbone size w/o insert (bp) 5679
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    1EW4
  • Alt name
    CYAY_ECOLI
  • Alt name
    Iron-sulfur cluster assembly protein CyaY (Bacterial frataxin ortholog)
  • Species
    Escherichia coli
  • Insert Size (bp)
    318
  • Entrez Gene
    cyaY (a.k.a. b3807, ECK3801)
  • Promoter T7
  • Tag / Fusion Protein
    • 10x HisTag-Smt3 (N terminal on backbone)

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Synthetic DNA

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

5' cloning site: BsaI (destroyed), 3' cloning site: BsaI (destroyed)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAIP4_1EW4 was a gift from Christopher Bahl (Addgene plasmid # 234180 ; http://n2t.net/addgene:234180 ; RRID:Addgene_234180)
