Addgene

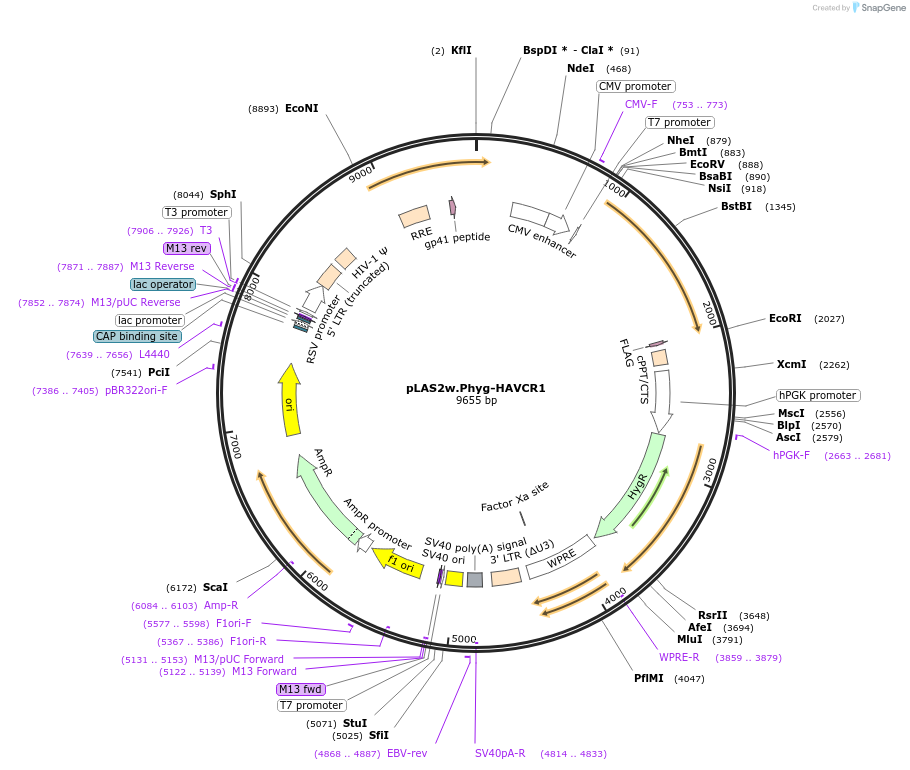

pLAS2w.Phyg-HAVCR1
(Plasmid #232669)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 232669 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLAS2w.Phyg
  • Backbone manufacturer
    National RNAi Core Facility at Academia Sinica
  • Backbone size w/o insert (bp) 8564
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HAVCR1
  • Alt name
    TIM-1
  • Alt name
    KIM-1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1157
  • Entrez Gene
    HAVCR1 (a.k.a. CD365, HAVCR, HAVCR-1, KIM-1, KIM1, TIM, TIM-1, TIM1, TIMD-1, TIMD1)
  • Promoter CMV
  • Tag / Fusion Protein
    • Flag (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV Forward
  • 3′ sequencing primer ATTCTTTCCCCTGCACTGTAC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLAS2w.Phyg-HAVCR1 was a gift from Chen-Yang Shen (Addgene plasmid # 232669 ; http://n2t.net/addgene:232669 ; RRID:Addgene_232669)
