p5E-Dll4-F2-E1B-B-Globin (JDW 1366)
(Plasmid
#229843)
-
PurposeA gateway compatible 5' entry clone containing the murine Dll4 F2 arterial specific enhancer upstream of a minimal E1b promoter and intron for arterial and endocardial expression.
-
Depositing Lab
-
Publication
-

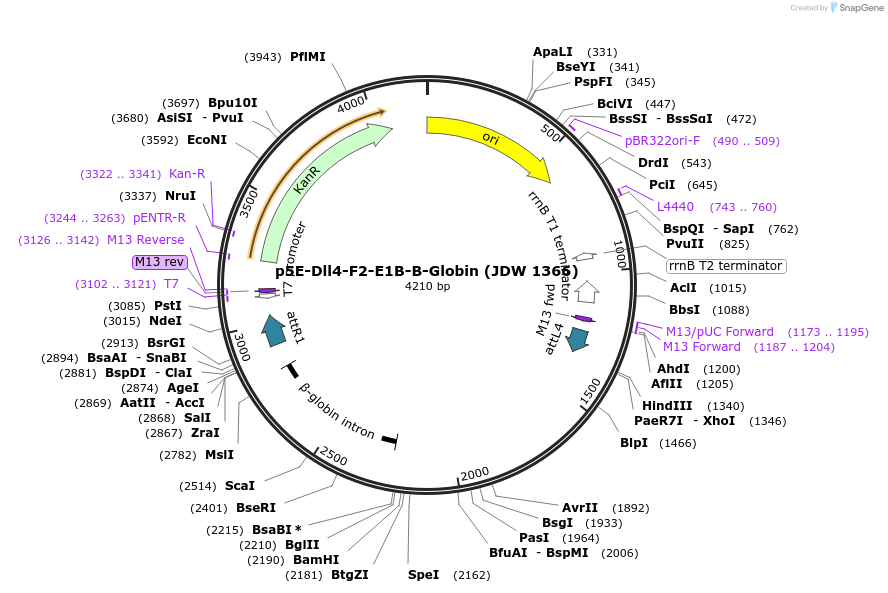

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 229843 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepDONR P4-P1r
-
Vector typeGateway entry clone
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameDll4-F2 (exon3)
-
SpeciesM. musculus (mouse)
Cloning Information
- Cloning method Gene Synthesis
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2024.07.13.603267 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
p5E-Dll4-F2-E1B-B-Globin (JDW 1366) was a gift from Joshua Wythe (Addgene plasmid # 229843 ; http://n2t.net/addgene:229843 ; RRID:Addgene_229843) -
For your References section:
Multisite Assembly of Gateway Induced Clones (MAGIC): a flexible cloning toolbox with diverse applications in vertebrate model systems. Gillespie W, Zhang Y, Ruiz OE, Cerda III J, Ortiz-Guzman J, Turner WD, Largoza G, Sherman M, Mosser LE, Fujimoto E, Chien C-B, Kwan KM, Arenkiel BR, Devine WP, Wythe JD. bioRxiv 2024.07.13.603267 10.1101/2024.07.13.603267
