pCAGEN-nls-mCherry-stop-IRES-myr-EGFP (JDW 1326)
(Plasmid
#229812)
-
PurposeA CAGGS driven expression vector containing an nls-mCherry followed by an IRES and then a myristoylated EGFP for labeling the cell membrane.
-
Depositing Lab
-
Depositing OrganizationUniversity of Virginia
Located in the United States of America -

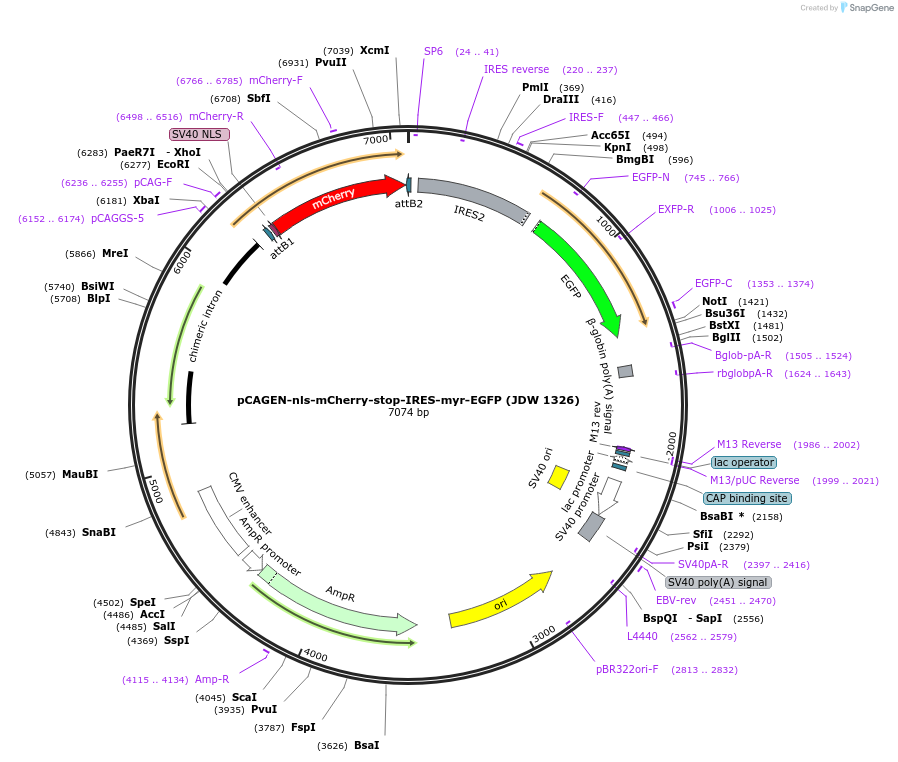

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 229812 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 229812-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 229812-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCAGEN-DV-IRES-myr-EGFP
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namenls-mCherry
-
SpeciesSynthetic
-
Tag
/ Fusion Protein
- SV40 NLS (N terminal on insert)
Cloning Information
- Cloning method Gateway Cloning
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2024.07.13.603267 for bioRxiv preprint.
DNA (Catalog # 229812-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 229812-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAGEN-nls-mCherry-stop-IRES-myr-EGFP (JDW 1326) was a gift from Joshua Wythe (Addgene plasmid # 229812 ; http://n2t.net/addgene:229812 ; RRID:Addgene_229812) -
For your References section:
MultiSite Assembly of Gateway Induced Clones (MAGIC): a flexible cloning toolbox for use in vertebrate model systems. Gillespie WB 3rd, Zhang Y, Ruiz OE, Cerda J 3rd, Ortiz-Guzman J, Sherman M, Turner WD, Largoza G, Mosser LE, Fujimoto E, Chien CB, Kwan KM, Arenkiel BR, Devine WP, Wythe JD. Development. 2025 Nov 15;152(22):dev204308. doi: 10.1242/dev.204308. Epub 2025 Nov 13. 10.1242/dev.204308 PubMed 41230856
