MZB174
(Plasmid
#228487)
-
Purpose(Empty Backbone) 10xHis-SUMO (Smt3) fused, HRV-3C cleavable, GST-tag for rapid cloning/DNA assembly of pulldown targets via NotI restriction site for E. coli based protein expression
-
Depositing Lab
-
Publication
-

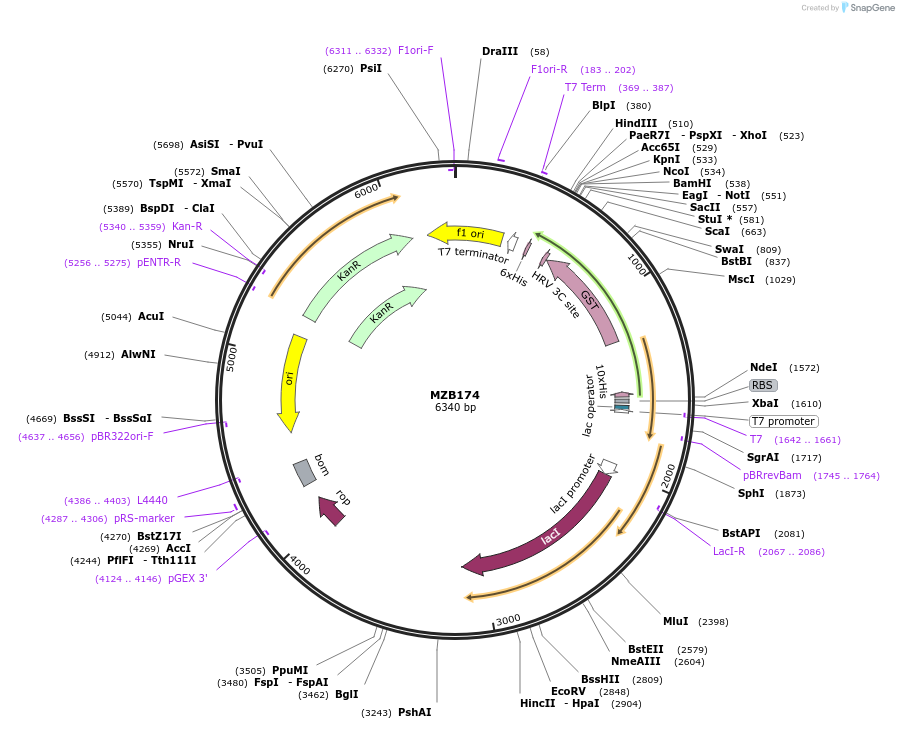

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 228487 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET29b
- Backbone size (bp) 5225
-
Vector typeBacterial Expression
- Promoter T7 Promoter
-
Tag
/ Fusion Protein
- 10xHis-SUMO(Smt3)-GST-HRV (N terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer T7 Promoter
- 3′ sequencing primer T7 Terminator (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
"Empty" vector for rapid cloning via DNA Assembly (i.e. Gibson, HiFi, etc.) via NotI linearization.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MZB174 was a gift from Richard Baker (Addgene plasmid # 228487 ; http://n2t.net/addgene:228487 ; RRID:Addgene_228487)
