pBTB-4
(Plasmid #22820)

• Purpose: (Empty Backbone)
• Depositing Lab: Ryan Gill
• Publication: Lynch et al Biotechnol Bioeng. 2006 May 5. 94(1):151-8.

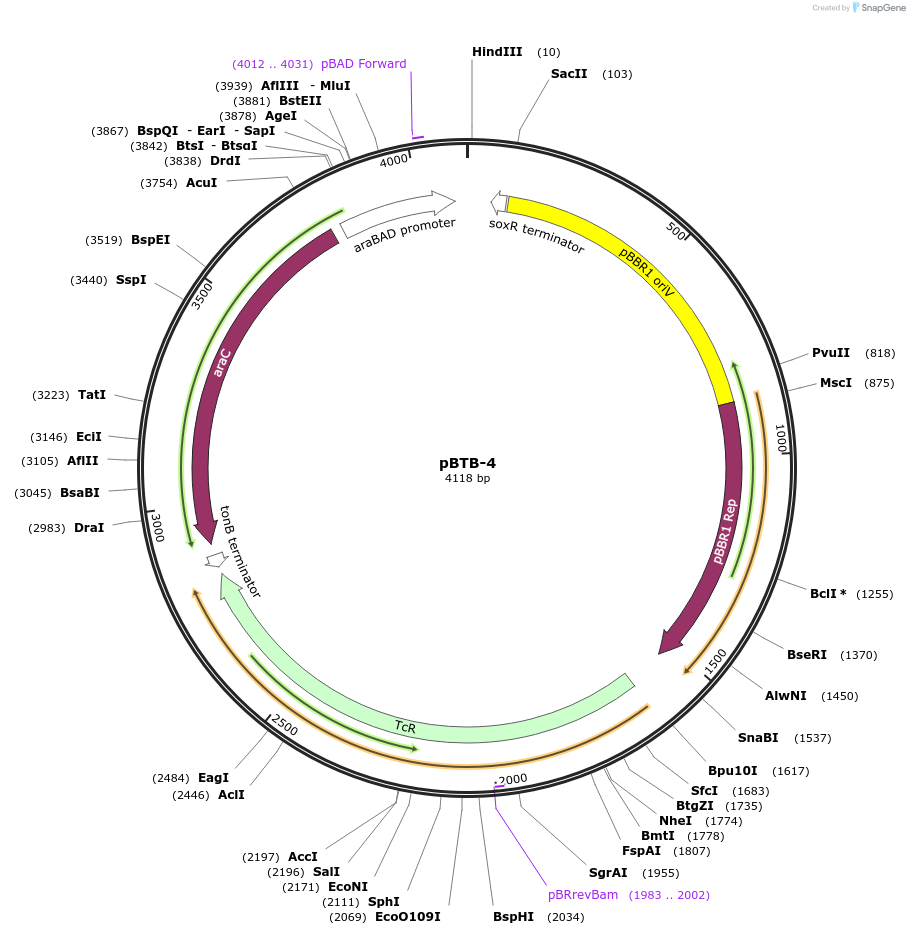

Backbone

• Vector backbone: pBTB-4
• Backbone size (bp): 4118
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Tetracycline, 10 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: None

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: XbaI (unknown if destroyed)
• 3′ cloning site: EcoRV (unknown if destroyed)
• 5′ sequencing primer: tttctccata cccgtttttt

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Addgene's QC sequence shows a 4bp gap with the depositor's provided sequence. The lab does not believe this affects the plasmid activity.
