pBTL-4
(Plasmid
#22808)
-
Purpose(Empty Backbone)
-
Depositing Lab
-
Publication
-

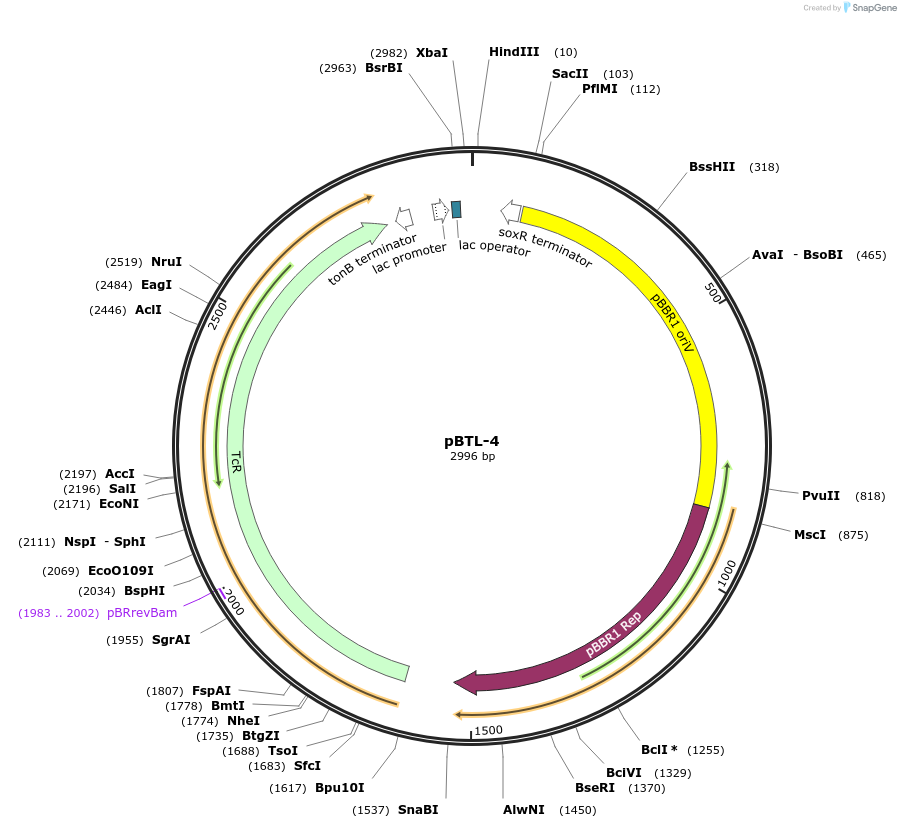

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 22808 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBTL-4
- Backbone size (bp) 2996
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Tetracycline, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameNone
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XbaI (unknown if destroyed)
- 3′ cloning site EcoRV (unknown if destroyed)
- 5′ sequencing primer gagcggataa caatttcaca (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBTL-4 was a gift from Ryan Gill (Addgene plasmid # 22808 ; http://n2t.net/addgene:22808 ; RRID:Addgene_22808) -
For your References section:
Broad host range vectors for stable genomic library construction. Lynch MD, Gill RT. Biotechnol Bioeng. 2006 May 5. 94(1):151-8. 10.1002/bit.20836 PubMed 16496398
