PDG458 V3
(Plasmid
#226959)
-

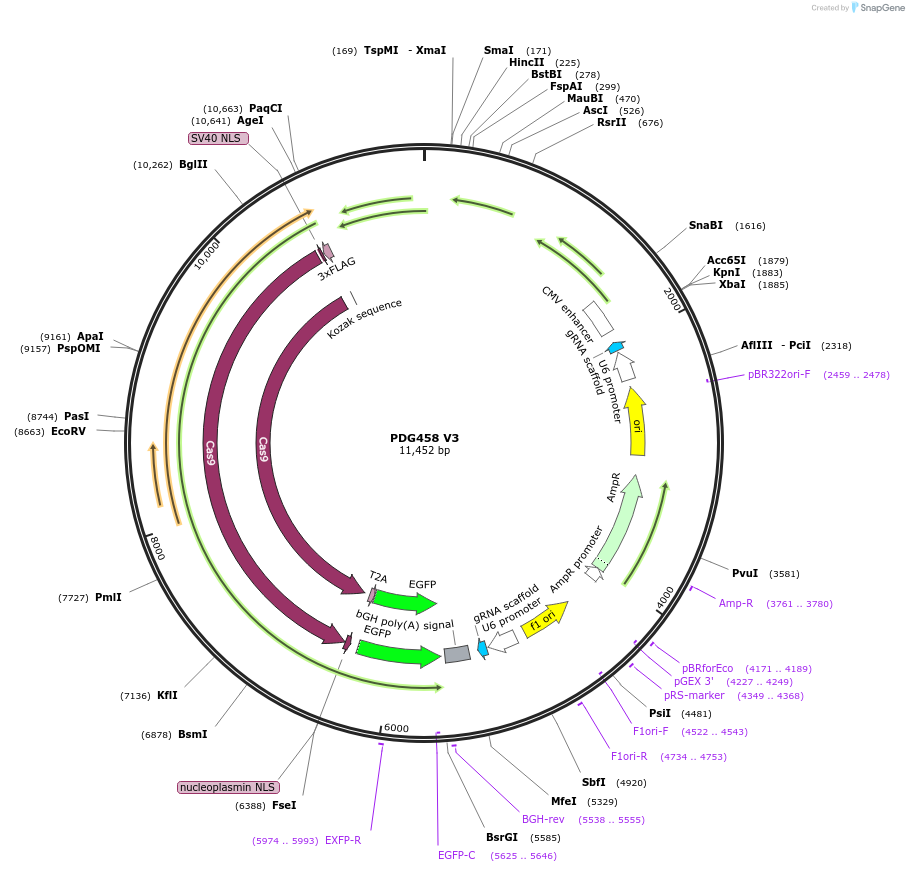

Purpose(Empty Backbone) CBh-SpCas9-2A-GFP, and 2X hU6-sgRNA (Sp) with BbsI golden gate cloning backbone dual gRNAs. sgRNA uses 3TC scaffold for increased sgRNA expression.
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 226959 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonePX458 V3
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Contains SpCas9-2A-GFP . Please visit https://doi.org/10.1101/2024.07.19.604224 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
PDG458 V3 was a gift from Paul Thomas (Addgene plasmid # 226959 ; http://n2t.net/addgene:226959 ; RRID:Addgene_226959) -
For your References section:
Enhancing gRNA Transcript levels by Reducing the Scaffold Poly-T Tract for Optimal SpCas9- and SaCas9-mediated Gene Editing. Chey YCJ, Gierus L, Lushington C, Arudkumar JC, Geiger A, Staker LG, Robertson LJ, Pfitzner C, Kennedy JG, Lee RHB, Godahewa GI, Thomas PQ, Adikusuma F. bioRxiv 2024.07.19.604224 10.1101/2024.07.19.604224
