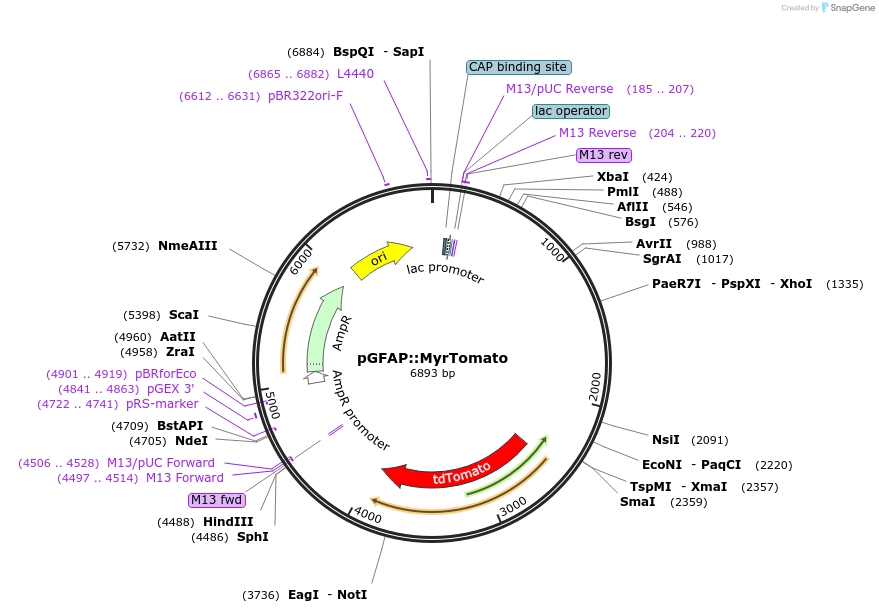

pGFAP::MyrTomato
(Plasmid #22671)

• Depositing Lab: Robert Benezra
• Publication: Nam et al Cell Stem Cell. 2009 Nov 6. 5(5):515-26.

Backbone

• Vector backbone: Gfa2-cLac
• Backbone size w/o insert (bp): 5500
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: myrtdTomato
• Insert Size (bp): 1400
• Mutation: Gfa2 human GFAP promoter

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamH1 (not destroyed)
• 3′ cloning site: BamH1 (not destroyed)
• 5′ sequencing primer: n/a

Resource Information

• Supplemental Documents:
  • pGfa2-myrTdTomato.gb
• A portion of this plasmid was derived from a plasmid made by: Michael Brenner [mailto:]
• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry

Depositor Comments

MyrTdTomato fragment amplified by high fidelity PCR from plasmid pROSA26-mT-mG (www.addgene.org/17787) was InFusion cloned into BamHI site of pGFAP-EGFR* plasmid obtained from Dr. Eric Holland to construct this plasmid. The ~2.2 kb Gfa2 GFAP promoter in the pGFAP-EGFR* plasmid is presumably the same promoter utilized in the GFAP-tva transgenic mouse in Holland EC and Varmus HE https://doi.org/10.1073/pnas.95.3.1218. Addgene NGS sequencing of this plasmid confirmed the Gfa2 promoter sequence in this plasmid is identical to the hGFAP promoter sequences in other Gfa2 plasmids, such as hGFAP-GFP (http://www.addgene.org/40592/) and hGFAP-Cre (http://www.addgene.org/40591/)
