pCDNA3.1(+)-hSyn-HA-mTREK-1(S131C/A286F)-IRES-GFP
(Plasmid
#225490)
-
PurposeNeuronal expression IRES-containing bicistronic vector for generating mTREK-1 (S131C/A286F) + EGFP under the hSyn promoter.
-
Depositing Lab
-

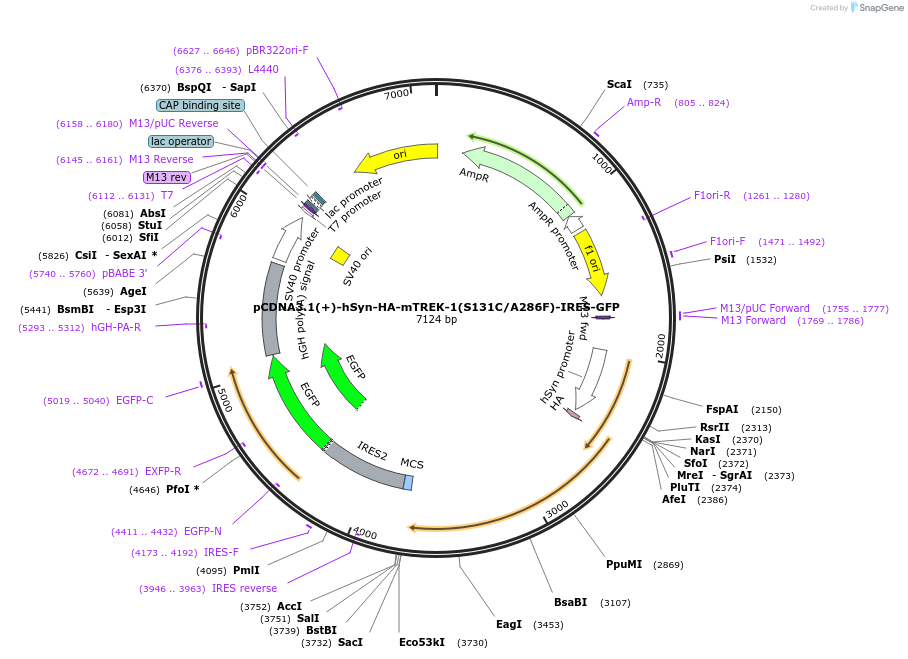

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 225490 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepcDNA3.1
-
Vector typeMammalian Expression ; Neuronal expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePotassium channel subfamily K member 2
-
Alt nameKcnk2
-
Alt nameTREK-1
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)2625
-
GenBank ID16526 NP_034737.2
-
Entrez GeneKcnk2 (a.k.a. A430027H14Rik, TREK-1)
- Promoter hSyn
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
NOTE: Also known as TREK-1CG* A286F and used in chemogenetic strategy termed CATKLAMP (covalent activation of TREK family K+ channels to clamp membrane potential) for irreversibly activating K2P potassium channels and thereby silencing of electrical activity in neurons in the presence of CAT335, a maleimide derivative of the K2P modulator pocket activator ML335.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCDNA3.1(+)-hSyn-HA-mTREK-1(S131C/A286F)-IRES-GFP was a gift from Dan Minor (Addgene plasmid # 225490 ; http://n2t.net/addgene:225490 ; RRID:Addgene_225490) -
For your References section:
Development of covalent chemogenetic K(2P) channel activators. Deal PE, Lee H, Mondal A, Lolicato M, Mendonca PRF, Black H, Jang S, El-Hilali X, Bryant C, Isacoff EY, Renslo AR, Minor DL Jr. Cell Chem Biol. 2024 Jul 18;31(7):1305-1323.e9. doi: 10.1016/j.chembiol.2024.06.006. 10.1016/j.chembiol.2024.06.006 PubMed 39029456
