Addgene

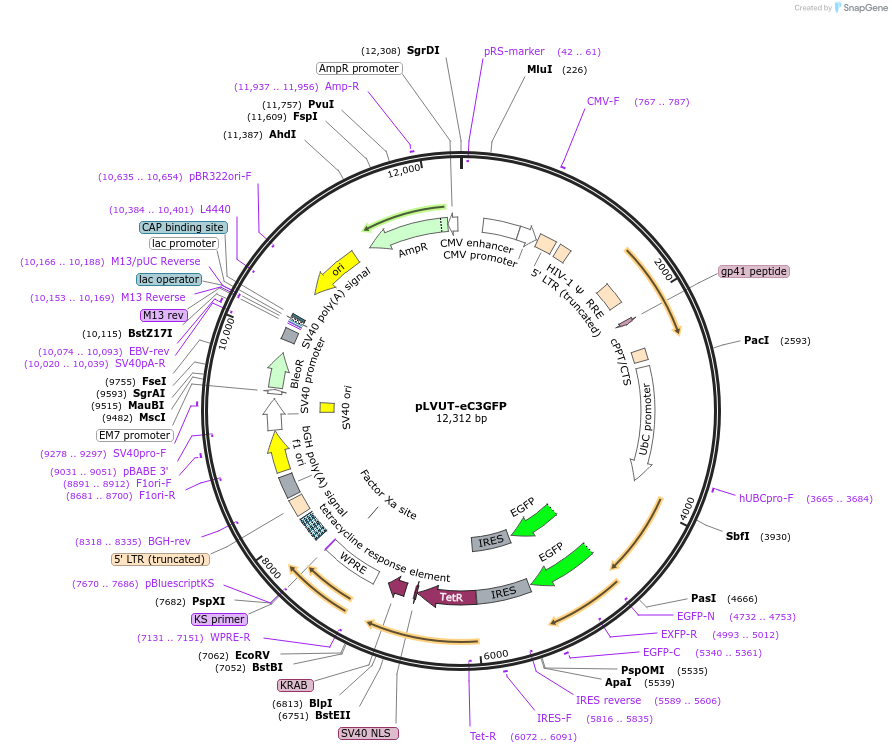

pLVUT-eC3GFP
(Plasmid #225485)

Print

Ordering

This material is available to academics and nonprofits only. Availability may be limited outside the U.S. Please log in for more information.
Item Catalog # Description Quantity Price (USD)
Plasmid 225485 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLVUT-tTR-KRAB
  • Backbone manufacturer
    Addgene Plasmid #11651, PIs Patrick Aebischer and Didier Trono
  • Backbone size w/o insert (bp) 11550
  • Total vector size (bp) 12315
  • Modifications to backbone
    Added self-cleaving F2A sequence before the EGFP tag
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Exoenzyme C3 transferase
  • Alt name
    C3
  • Species
    C. botulinum
  • Insert Size (bp)
    807
  • Mutation
    Amino acids 30-251, See Depositor Comments
  • Promoter Human ubiquitin C
  • Tag / Fusion Protein
    • EGFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer tgaagctccggttttgaact
  • 3′ sequencing primer cgtcgccgtccagctcgaccag
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Deletion of E262 in the F2A sequence does not affect EGFP expression.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLVUT-eC3GFP was a gift from Robert Gross (Addgene plasmid # 225485 ; http://n2t.net/addgene:225485 ; RRID:Addgene_225485)

  • For your References section:

    C3 transferase gene therapy for continuous conditional RhoA inhibition. Gutekunst CA, Tung JK, McDougal ME, Gross RE. Neuroscience. 2016 Dec 17;339:308-318. doi: 10.1016/j.neuroscience.2016.10.022. Epub 2016 Oct 13. 10.1016/j.neuroscience.2016.10.022 PubMed 27746349
