pUPD2_miniDFR-FRT-OCSterm-FRT-miniDFR (GB4642)
(Plasmid
#225430)
-
PurposeOCS terminator flanked by two flippase recognition target (FRT) sites located at position 112 of the SlDFR minimal promoter
-
Depositing Lab
-

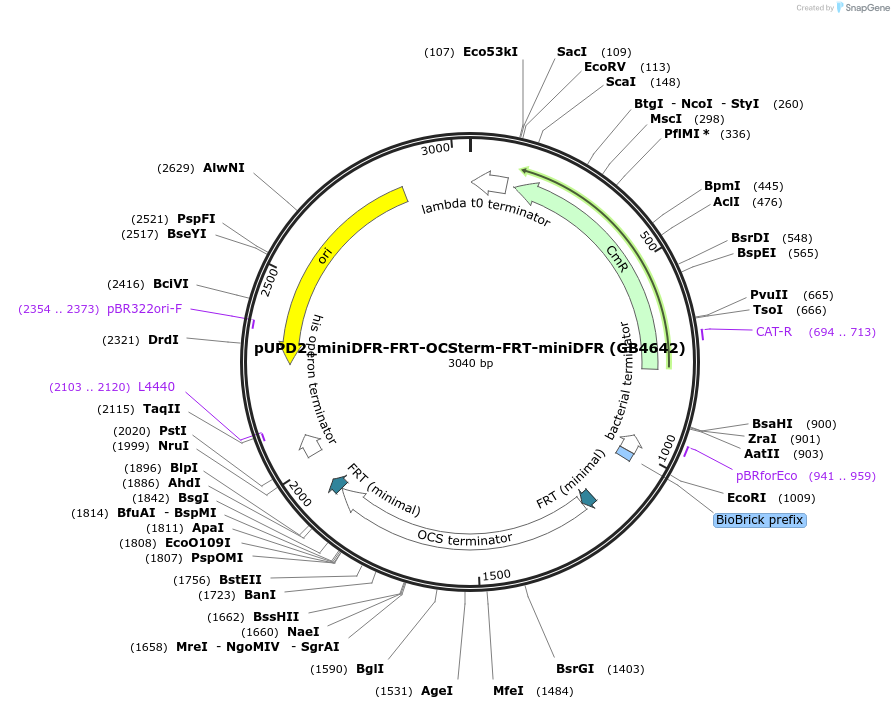

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 225430 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUPD2
-
Backbone manufacturerself-made
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameminiDFR-FRT-OCSterm-FRT-miniDFR
-
SpeciesSynthetic
-
Insert Size (bp)935
-
MutationBsaI and BsmBI sites removed
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
- 5′ sequencing primer gctttcgctaaggatgatttctgg
- 3′ sequencing primer cagggtggtgacaccttgcc (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Compatible with GoldenBraid; insert can be released with BsaI.
Please visit https://doi.org/10.1101/2024.04.30.591823 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUPD2_miniDFR-FRT-OCSterm-FRT-miniDFR (GB4642) was a gift from Diego Orzaez (Addgene plasmid # 225430 ; http://n2t.net/addgene:225430 ; RRID:Addgene_225430)
