pV231-xPE
(Plasmid #225257)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 225257 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

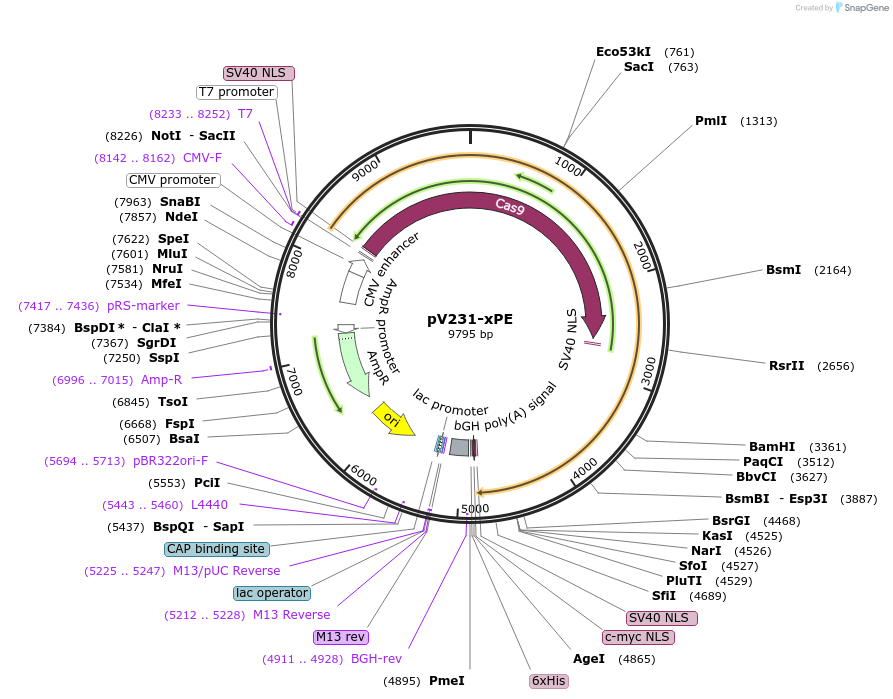

Backbone

  • Vector backbone
    pCMV
  • Total vector size (bp) 9795
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    xPE
  • Species
    Synthetic; S. pyogenes
  • Insert Size (bp)
    6396
  • Mutation
    R221K K848A H982A N1317R
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site BshTI (not destroyed)
  • 5′ sequencing primer n/a
  • 3′ sequencing primer n/a
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2024.08.02.606370 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pV231-xPE was a gift from Vikash Chauhan & Robert Langer & Phil Sharp (Addgene plasmid # 225257 ; http://n2t.net/addgene:225257 ; RRID:Addgene_225257)

  • For your References section:

    Engineered prime editors with minimal genomic errors. Chauhan VP, Sharp PA, Langer R. bioRxiv 2024.08.02.606370 10.1101/2024.08.02.606370
