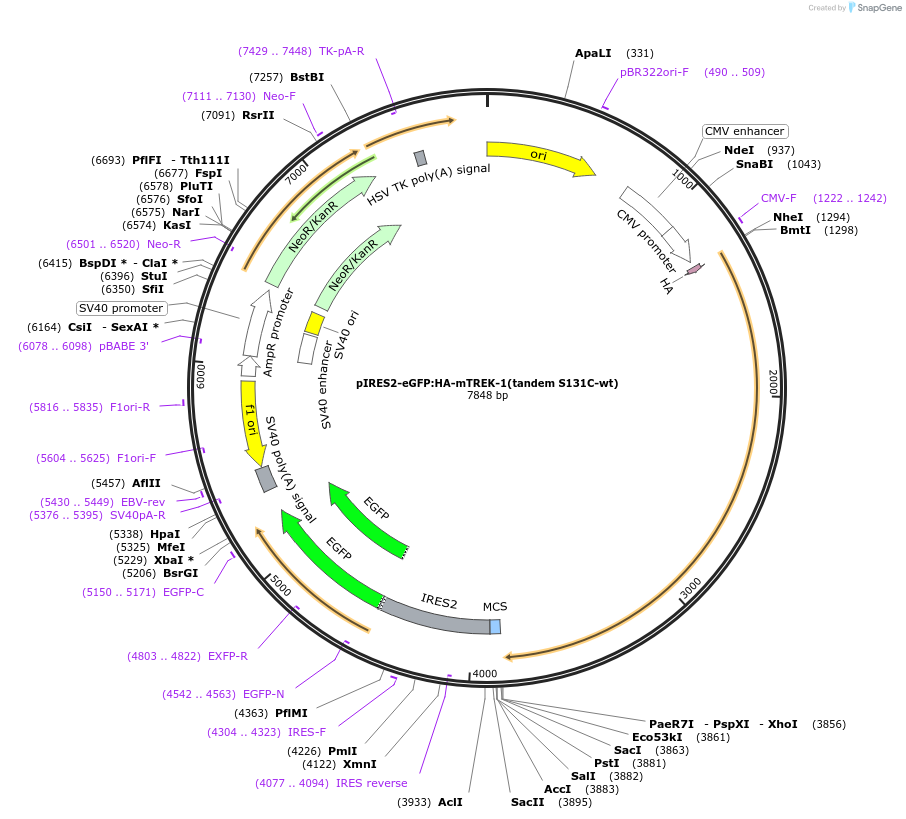

pIRES2-eGFP:HA-mTREK-1(tandem S131C-wt)
(Plasmid #224777)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 224777 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pIRES2-eGFP
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Tandem TREK-1 (S131C-wt)
  • Alt name
    Kcnk2
  • Alt name
    TREK-1
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    2556
  • Mutation
    S131C
  • Entrez Gene
    Kcnk2 (a.k.a. A430027H14Rik, TREK-1)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pIRES2-eGFP:HA-mTREK-1(tandem S131C-wt) was a gift from Dan Minor (Addgene plasmid # 224777 ; http://n2t.net/addgene:224777 ; RRID:Addgene_224777)

  • For your References section:

    Development of covalent chemogenetic K(2P) channel activators. Deal PE, Lee H, Mondal A, Lolicato M, Mendonca PRF, Black H, Jang S, El-Hilali X, Bryant C, Isacoff EY, Renslo AR, Minor DL Jr. Cell Chem Biol. 2024 Jul 18;31(7):1305-1323.e9. doi: 10.1016/j.chembiol.2024.06.006. 10.1016/j.chembiol.2024.06.006 PubMed 39029456
