pSuper DGK zeta human
(Plasmid #224575)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 224575 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

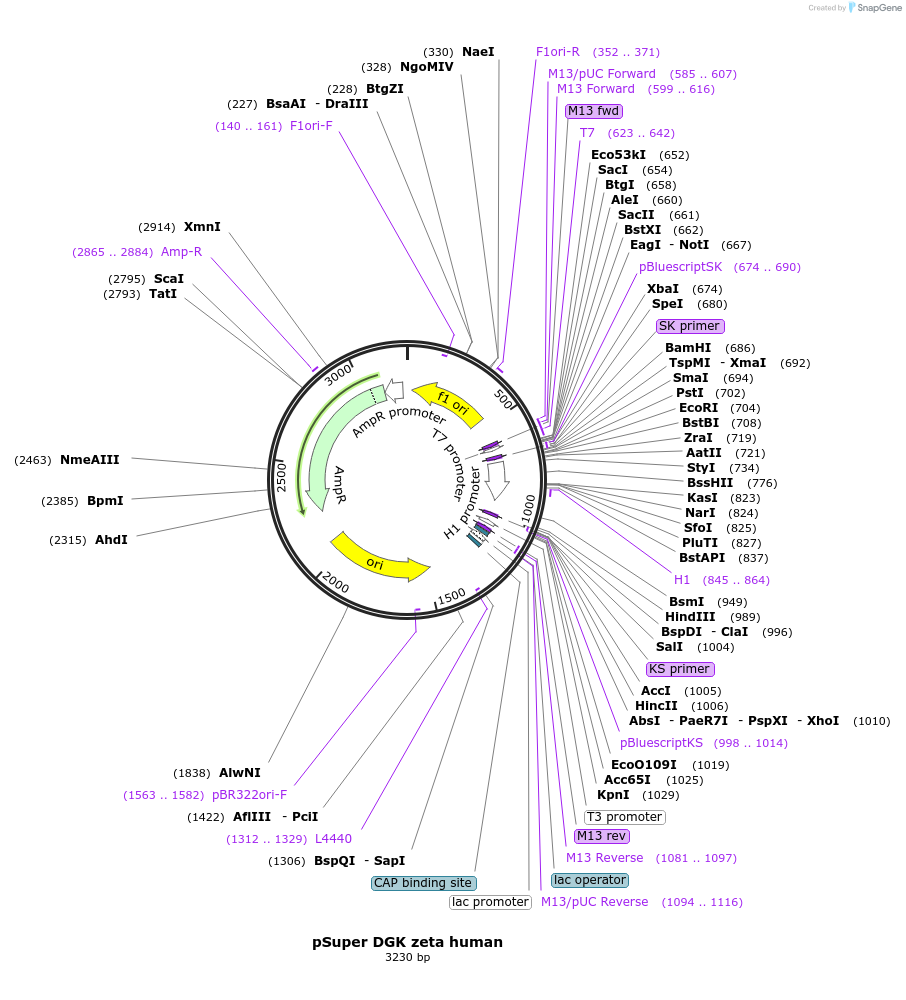

Backbone

  • Vector backbone
    pSUPER
  • Backbone manufacturer
    Oligoengine
  • Backbone size w/o insert (bp) 3176
  • Vector type
    RNAi

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    sh RNAi Diacylglycerol kinase zeta human
  • gRNA/shRNA sequence
    CTATGTGACTGAGATCGCAttcaagagaTGCGATCTCAGTCACATAG
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    64
  • Entrez Gene
    DGKZ (a.k.a. DAGK5, DAGK6, DGK-ZETA, hDGKzeta)
  • Promoter H1

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Bgl2 (destroyed during cloning)
  • 3′ cloning site Hind3 (not destroyed)
  • 5′ sequencing primer T7
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSuper DGK zeta human was a gift from Isabel Mérida (Addgene plasmid # 224575 ; http://n2t.net/addgene:224575 ; RRID:Addgene_224575)

  • For your References section:

    Predominant contribution of DGKzeta over DGKalpha in the control of PKC/PDK-1-regulated functions in T cells. Avila-Flores A, Arranz-Nicolas J, Andrada E, Soutar D, Merida I. Immunol Cell Biol. 2017 Jul;95(6):549-563. doi: 10.1038/icb.2017.7. Epub 2017 Feb 6. 10.1038/icb.2017.7 PubMed 28163304
