CCM2(413-438)_pHisSUMO(K0)
(Plasmid
#224065)
-
PurposeBacterial expression of the C-terminal helix of CCM2 (residues 413-438) fused to an N-terminal hexa-histidine tag and SUMO(K0) [all lysines in SUMO mutated to arginines]. HRV-3C cleavage site
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 224065 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * |
* Log in to view industry pricing.

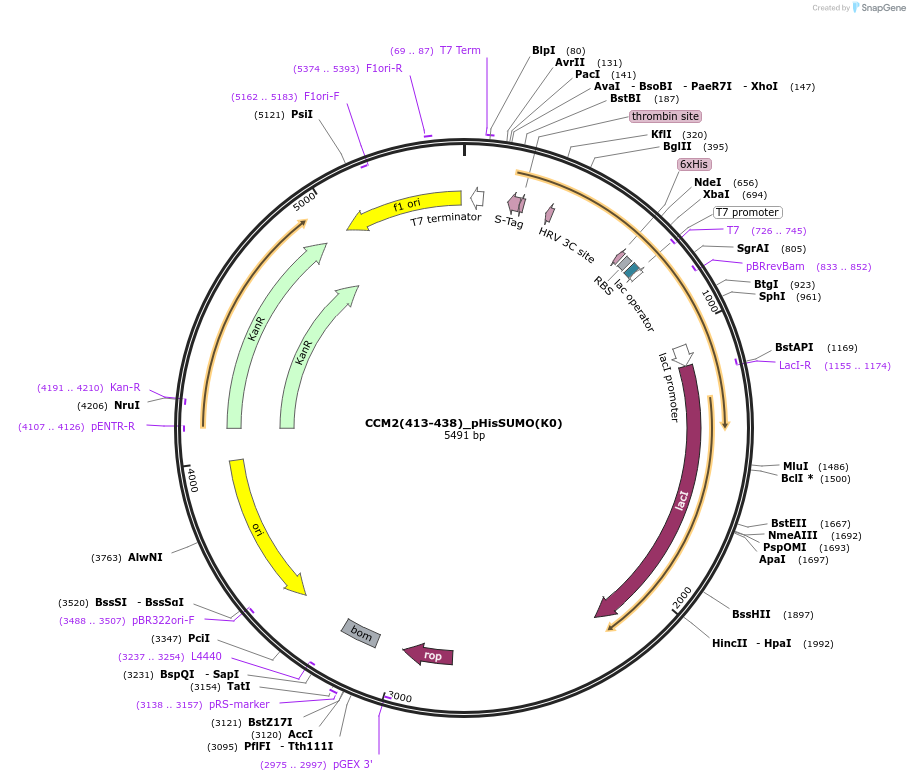

Backbone
-
Vector backbonepET47b
- Backbone size w/o insert (bp) 5484
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameccm2
-
SpeciesH. sapiens (human)
-
Insert Size (bp)78
-
Entrez GeneCCM2 (a.k.a. C7orf22, OSM, PP10187)
- Promoter T7
-
Tag
/ Fusion Protein
- 6xHIS; SUMO(K0) (N terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7 Fwd
- 3′ sequencing primer T7 Rev (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
CCM2(413-438)_pHisSUMO(K0) was a gift from Ben Goult (Addgene plasmid # 224065 ; http://n2t.net/addgene:224065 ; RRID:Addgene_224065) -
For your References section:
TLNRD1 is a CCM complex component and regulates endothelial barrier integrity. Ball NJ, Ghimire S, Follain G, Pajari AO, Wurzinger D, Vaitkeviciute M, Cowell AR, Berki B, Ivaska J, Paatero I, Goult BT, Jacquemet G. J Cell Biol. 2024 Sep 2;223(9):e202310030. doi: 10.1083/jcb.202310030. Epub 2024 Jul 16. 10.1083/jcb.202310030 PubMed 39013281
