pHR-CD86
(Plasmid
#223604)
-
PurposeLentiviral expression of human CD86 in mammalian cells
-
Depositing Lab
-

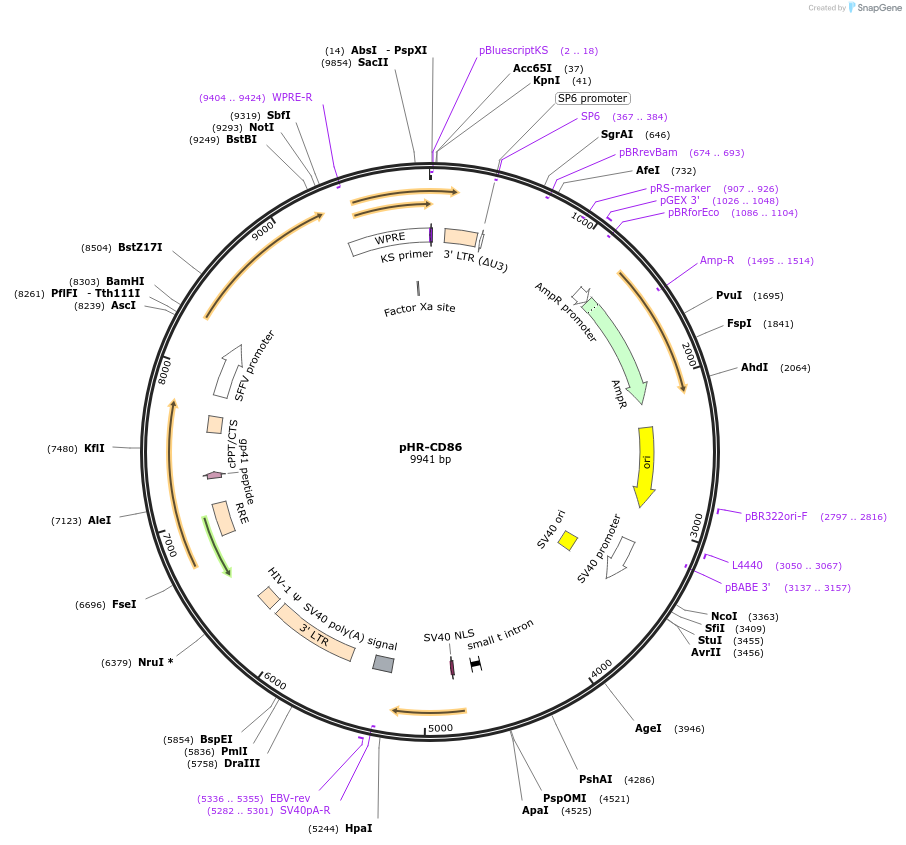

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 223604 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepHR
-
Vector typeLentiviral ; Mammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCD86
-
SpeciesH. sapiens (human)
-
Entrez GeneCD86 (a.k.a. B7-2, B7.2, B70, CD28LG2, LAB72)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer ccaatcagcctgcttctcgcttc
- 3′ sequencing primer ccagaggttgattatcgataagc (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Plasmid lab code: L1949
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHR-CD86 was a gift from Enfu Hui (Addgene plasmid # 223604 ; http://n2t.net/addgene:223604 ; RRID:Addgene_223604) -
For your References section:
cis-B7:CD28 interactions at invaginated synaptic membranes provide CD28 co-stimulation and promote CD8(+) T cell function and anti-tumor immunity. Zhao Y, Caron C, Chan YY, Lee CK, Xu X, Zhang J, Masubuchi T, Wu C, Bui JD, Hui E. Immunity. 2023 Jun 13;56(6):1187-1203.e12. doi: 10.1016/j.immuni.2023.04.005. Epub 2023 May 8. 10.1016/j.immuni.2023.04.005 PubMed 37160118
