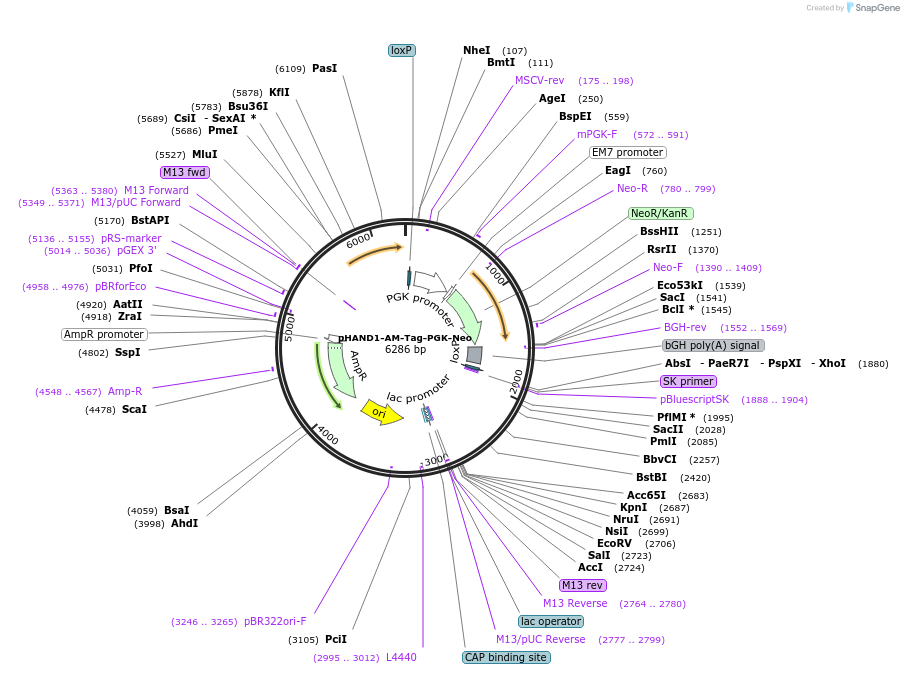

pHAND1-AM-Tag-PGK-Neo
(Plasmid #223216)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 223216 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pUC57
  • Backbone size w/o insert (bp) 2698
  • Total vector size (bp) 6286
  • Vector type
    Cre/Lox ; Human Targeting
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    HAND1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    3588
  • GenBank ID
    NM_004821.3
  • Entrez Gene
    HAND1 (a.k.a. Hxt, Thing1, bHLHa27, eHand)
  • Tag / Fusion Protein
    • AM-Tag (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GTAAAACGACGGCCAGT
  • 3′ sequencing primer CAGGAAACAGCTATGAC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHAND1-AM-Tag-PGK-Neo was a gift from Matthew Birket (Addgene plasmid # 223216 ; http://n2t.net/addgene:223216 ; RRID:Addgene_223216)

  • For your References section:

    HAND1 level controls the specification of multipotent cardiac and extraembryonic progenitors from human pluripotent stem cells. Lynch AT, Phillips N, Douglas M, Dorgnach M, Lin IH, Adamson AD, Darieva Z, Whittle J, Hanley NA, Bobola N, Birket MJ. EMBO J. 2025 Mar 31. doi: 10.1038/s44318-025-00409-0. 10.1038/s44318-025-00409-0 PubMed 40164946
