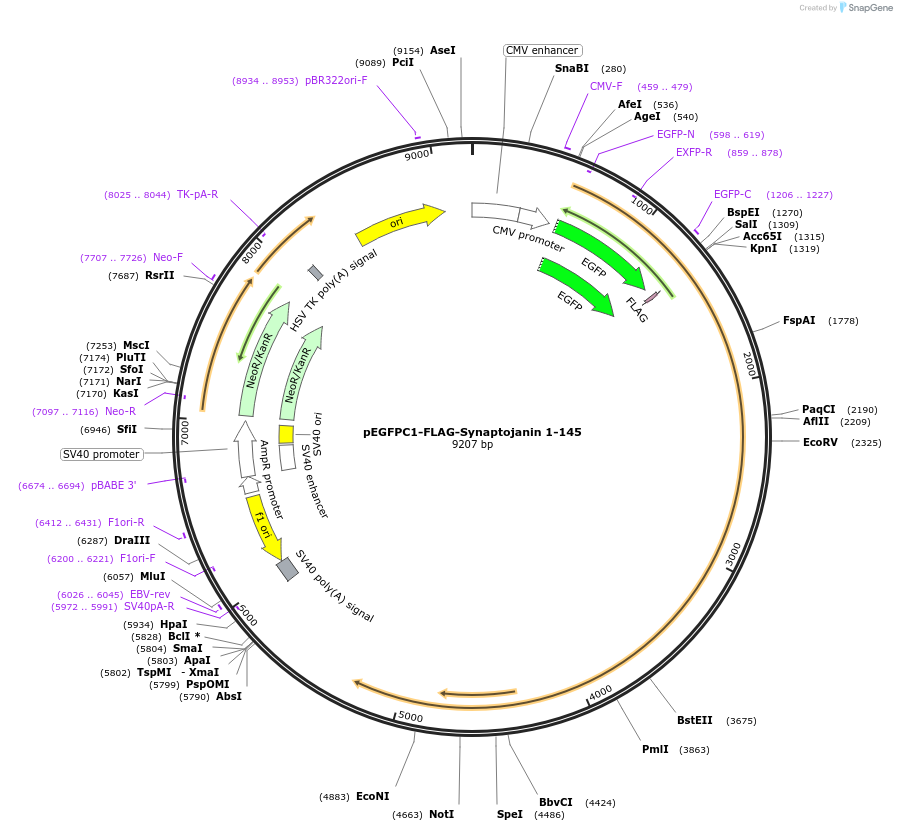

pEGFPC1-FLAG-Synaptojanin 1-145
(Plasmid #22293)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 22293 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression, Bacterial Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Synaptojanin 1_145
  • Alt name
    inositol 5'-phosphatase p145 isoform
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    4500
  • GenBank ID
    AF009039
  • Entrez Gene
    SYNJ1 (a.k.a. DEE53, EIEE53, INPP5G, PARK20)
  • Tags / Fusion Proteins
    • GFP (N terminal on backbone)
    • Flag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site ApaI (not destroyed)
  • 5′ sequencing primer EGFP-N Sequencing Primer
  • 3′ sequencing primer EGFP-C Sequencing Primer
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGFPC1-FLAG-Synaptojanin 1-145 was a gift from Pietro De Camilli (Addgene plasmid # 22293 ; http://n2t.net/addgene:22293 ; RRID:Addgene_22293)
  • For your References section:

    Two synaptojanin 1 isoforms are recruited to clathrin-coated pits at different stages. Perera RM, Zoncu R, Lucast L, De Camilli P, Toomre D. Proc Natl Acad Sci U S A. 2006 Dec 19. 103(51):19332-7. 10.1073/pnas.0609795104 PubMed 17158794
