pTZ18U-pufLM-Clonable
(Plasmid #222743)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 222743 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

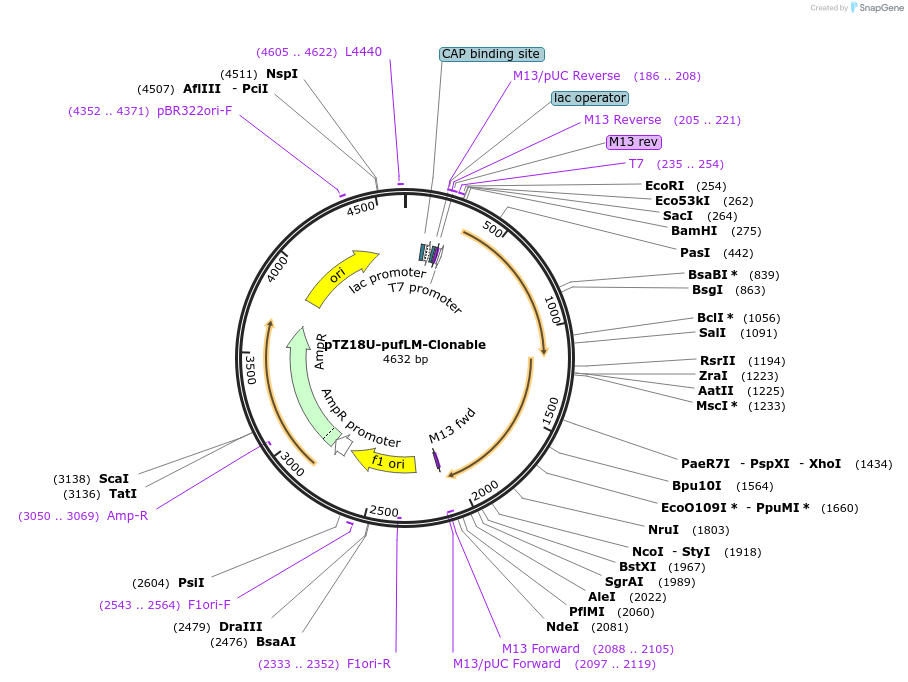

Backbone

  • Vector backbone
    pTZ18U
  • Backbone size w/o insert (bp) 2858
  • Total vector size (bp) 4634

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert 1

  • Gene/Insert name
    pufL
  • Species
    Rhodobacter sphaeroides
  • Insert Size (bp)
    849

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site None (unknown if destroyed)
  • 5′ sequencing primer gttgtgtggaattgtgagcggataac
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    pufM
  • Species
    Rhodobacter sphaeroides
  • Insert Size (bp)
    927

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site None (unknown if destroyed)
  • 3′ cloning site NdeI (unknown if destroyed)
  • 5′ sequencing primer gttgtgtggaattgtgagcggataac
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTZ18U-pufLM-Clonable was a gift from Steven Boxer (Addgene plasmid # 222743 ; http://n2t.net/addgene:222743 ; RRID:Addgene_222743)
