Addgene

pSF511
(Plasmid #222719)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 222719 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

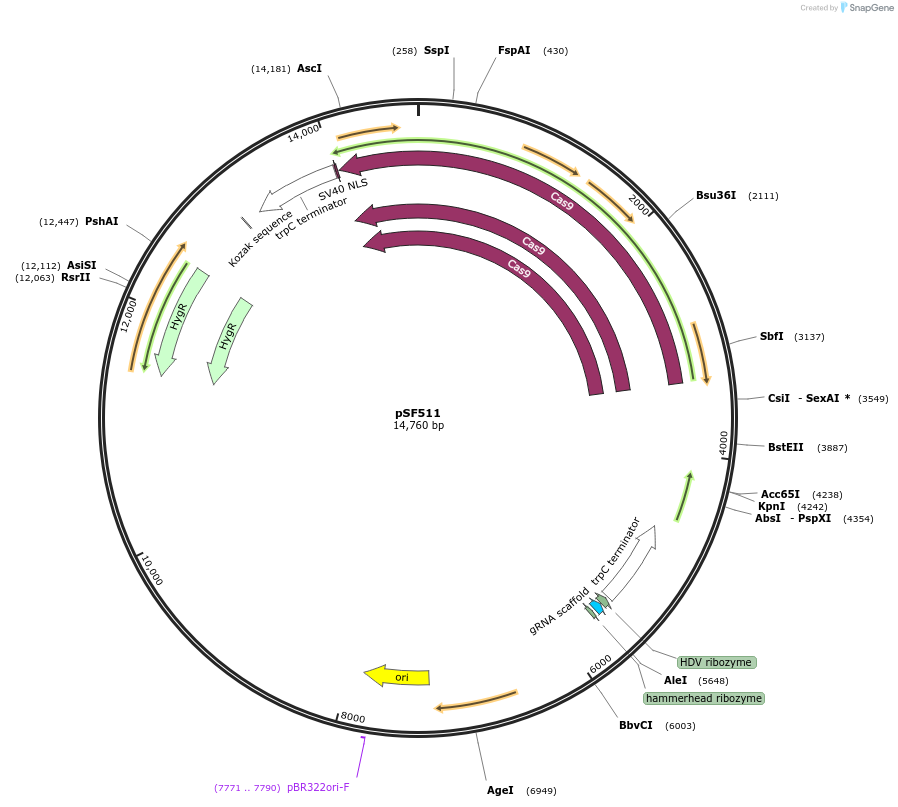

Backbone

  • Vector backbone
    pMST665_BB3_L 23_gRNAempty_cas9_BbsI
  • Backbone manufacturer
    Michael Sauer (Sarkari et al. 2017) Addgene #90278
  • Total vector size (bp) 14715
  • Vector type
    Bacterial Expression, CRISPR ; A. niger
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Hygromycin, 200 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    gRNA1(gsdA)
  • gRNA/shRNA sequence
    ACGGTGGTGAAAACGCTGGG
  • Promoter pmbfA

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSF511 was a gift from Matthias Steiger (Addgene plasmid # 222719 ; http://n2t.net/addgene:222719 ; RRID:Addgene_222719)

  • For your References section:

    Regulation of the Glucose-6-phosphate dehydrogenase encoding gene gsdA and its impact on growth and citric acid production in Aspergillus niger. Matthias Steiger. PLOS One 10.1371/journal.pone.0321363
