pCAG-mCherry-FKBP-GEF(ITSN1)
(Plasmid
#222631)
-
PurposeCdc42 activation using rapamycin
-
Depositing Lab
-

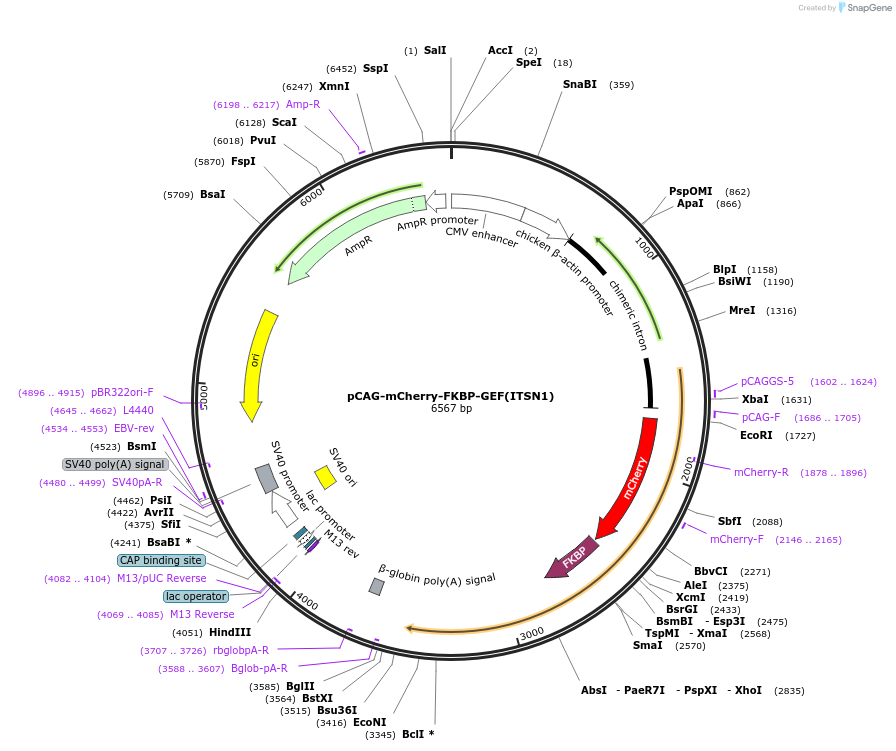

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 222631 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepCAGEN
- Backbone size w/o insert (bp) 4798
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemCherry-FKBP-GEF(ITSN1)
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1770
-
Entrez GeneITSN1 (a.k.a. ITSN, SH3D1A, SH3P17)
- Promoter CAG
-
Tag
/ Fusion Protein
- mCherry-FKBP (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer pCAG-F
- 3′ sequencing primer ACACCAGCCACCACCTTC (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
ITSN1(1218-1429).
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-mCherry-FKBP-GEF(ITSN1) was a gift from Arnold Hayer (Addgene plasmid # 222631 ; http://n2t.net/addgene:222631 ; RRID:Addgene_222631) -
For your References section:
Excitable Rho dynamics control cell shape and motility by sequentially activating ERM proteins and actomyosin contractility. Marshall-Burghardt S, Migueles-Ramirez RA, Lin Q, El Baba N, Saada R, Umar M, Mavalwala K, Hayer A. Sci Adv. 2024 Sep 6;10(36):eadn6858. doi: 10.1126/sciadv.adn6858. Epub 2024 Sep 6. 10.1126/sciadv.adn6858 PubMed 39241071
