pEGFPC1-muscle Amphiphysin 2
(Plasmid #22213)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 22213 Standard format: Plasmid sent in bacteria as agar stab 1 $85

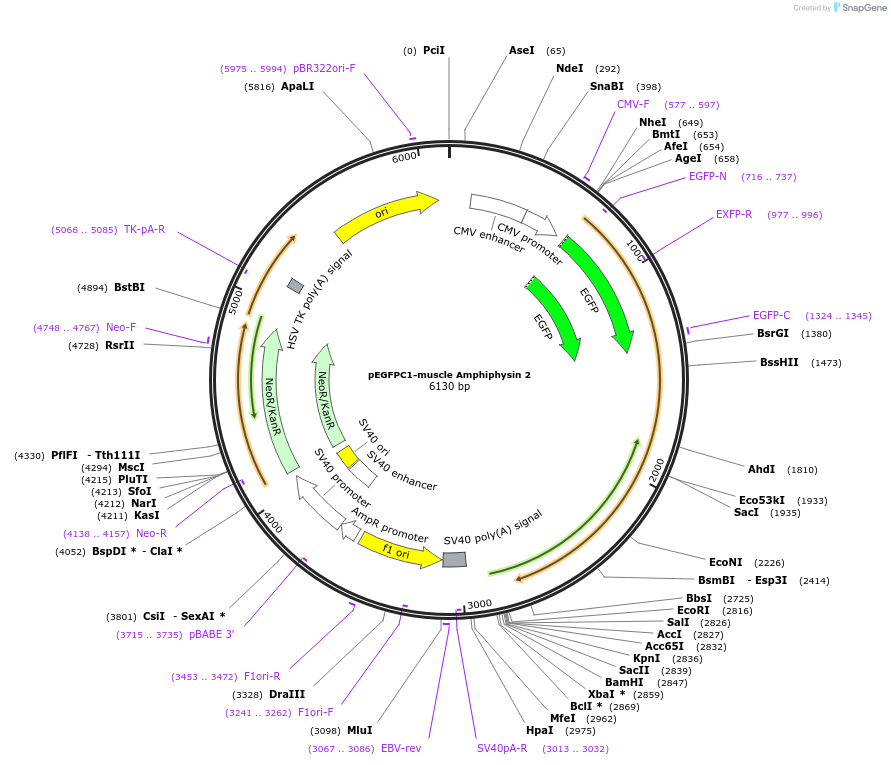

Backbone

  • Vector backbone
    pEGFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression, Bacterial Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Amphiphysin II
  • Alt name
    BIN1
  • Alt name
    SH3P9
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1998
  • GenBank ID
    U87558
  • Entrez Gene
    BIN1 (a.k.a. AMPH2, AMPHL, CNM2, SH3P9)
  • Tag / Fusion Protein
    • GFP (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII/ BamHI (destroyed during cloning)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer EGFP-N Sequencing Primere
  • 3′ sequencing primer EGFP-C Sequencing Primer
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGFPC1-muscle Amphiphysin 2 was a gift from Pietro De Camilli (Addgene plasmid # 22213 ; http://n2t.net/addgene:22213 ; RRID:Addgene_22213)
  • For your References section:

    Amphiphysin II (SH3P9; BIN1), a member of the amphiphysin/Rvs family, is concentrated in the cortical cytomatrix of axon initial segments and nodes of ranvier in brain and around T tubules in skeletal muscle. Butler MH, David C, Ochoa GC, Freyberg Z, Daniell L, Grabs D, Cremona O, De Camilli P. J Cell Biol. 1997 Jun 16. 137(6):1355-67. 10.1083/jcb.137.6.1355 PubMed 9182667
