ND4 DdCBE T2
(Plasmid #221981)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 221981 Standard format: Plasmid sent in bacteria as agar stab 1 $85

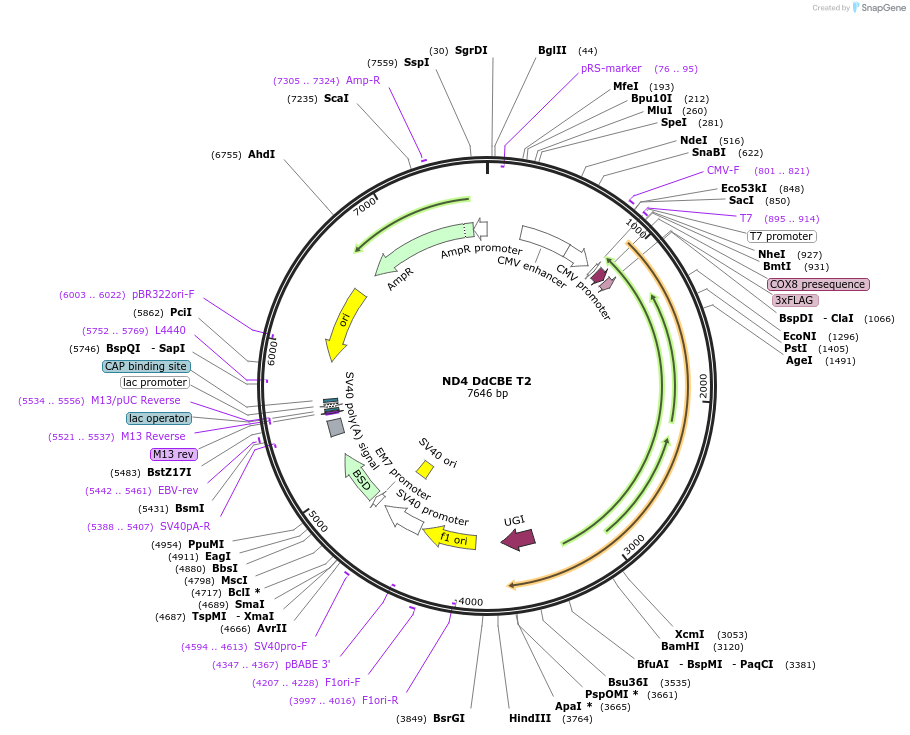

Backbone

  • Vector backbone
    pCMV
  • Backbone size w/o insert (bp) 4717
  • Vector type
    Mammalian Expression, CRISPR
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    COX8A MTS-3xFLAG-TALE NT-T-ND4 TALE T2 repeats-TALE CTD-DddAtox 1397N-UGI-ATP5B 3'UTR
  • Species
    Synthetic
  • Insert Size (bp)
    2929
  • Promoter CMV
  • Tag / Fusion Protein
    • 3xFLAG (N terminal on backbone)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

5' Cloning Site: BsmBI (Not Destroyed), 3' Cloning Site: BsmBI (Not Destroyed). Please visit https://www.biorxiv.org/content/10.1101/2024.05.13.593977v1 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ND4 DdCBE T2 was a gift from Stephen Ekker (Addgene plasmid # 221981 ; http://n2t.net/addgene:221981 ; RRID:Addgene_221981)
  • For your References section:

    Unconstrained Precision Mitochondrial Genome Editing with alphaDdCBEs. Castillo SR, Simone BW, Clark KJ, Devaux P, Ekker SC. Hum Gene Ther. 2024 Sep 24. doi: 10.1089/hum.2024.073. 10.1089/hum.2024.073 PubMed 39212664
