pMRXIB-WIPI2b-mRuby3
(Plasmid #221749)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 221749 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

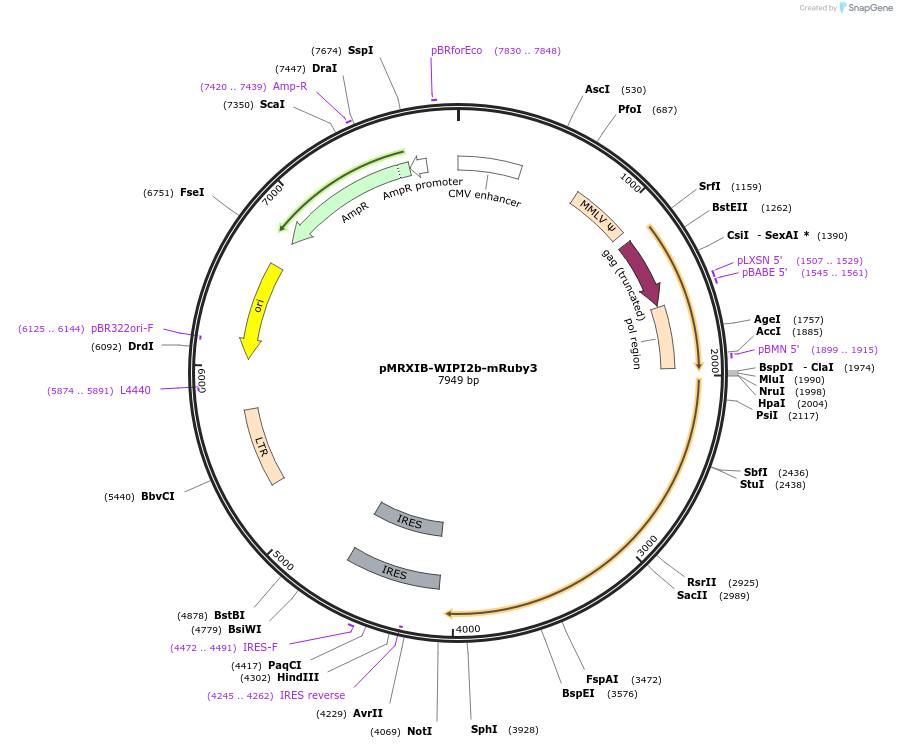

Backbone

  • Vector backbone
    pMRX-IB
  • Backbone manufacturer
    Dr.Shoji Yamaoka of Tokyo Medical and Dental University
  • Backbone size w/o insert (bp) 6137
  • Total vector size (bp) 8001
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    100 μg/mL
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    WIPI2b
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1308
  • GenBank ID
    NM_001033518
  • Entrez Gene
    WIPI2 (a.k.a. ATG18B, Atg21, CGI-50, IDDSSA, WIPI-2)
  • Tag / Fusion Protein
    • mRuby3 (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGTTCGCGAGTTAACGGATCCatgaacctggcgagccagagcgg
  • 3′ sequencing primer CACGGATCCCACCATGAATTCgtcagtccgaagaatcatggg
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMRXIB-WIPI2b-mRuby3 was a gift from Noboru Mizushima (Addgene plasmid # 221749 ; http://n2t.net/addgene:221749 ; RRID:Addgene_221749)

  • For your References section:

    Syntaxin 17 recruitment to mature autophagosomes is temporally regulated by PI4P accumulation. Shinoda S, Sakai Y, Matsui T, Uematsu M, Koyama-Honda I, Sakamaki JI, Yamamoto H, Mizushima N. Elife. 2024 Jun 4;12:RP92189. doi: 10.7554/eLife.92189. 10.7554/eLife.92189 PubMed 38831696
