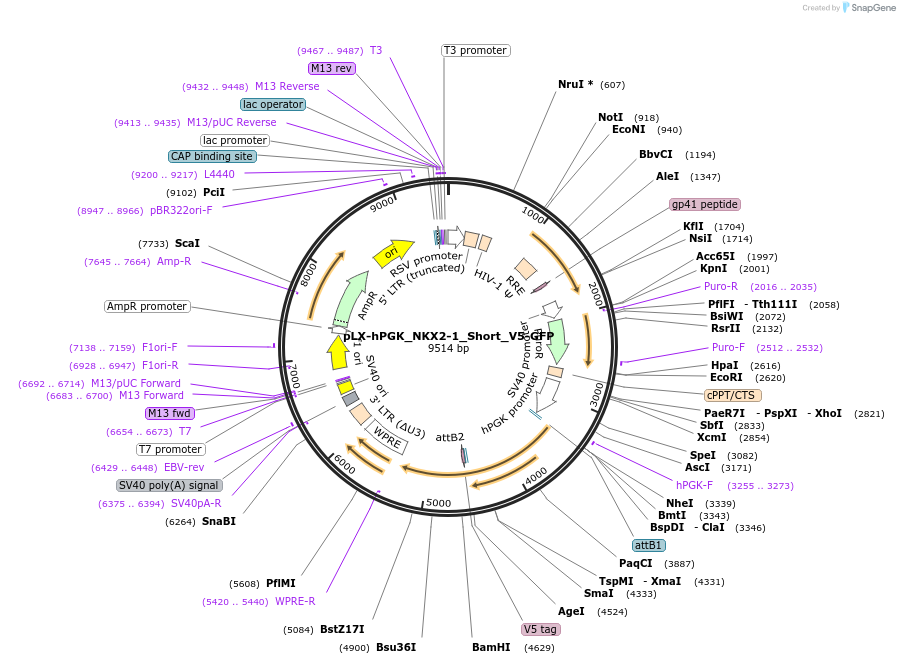

pLX-hPGK_NKX2-1_Short_V5-GFP
(Plasmid #221498)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 221498 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLX307
  • Backbone size w/o insert (bp) 10065
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NKX2-1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1113
  • Entrez Gene
    NKX2-1 (a.k.a. BCH, BHC, NK-2, NKX2.1, NKX2A, NMTC1, T/EBP, TEBP, TITF1, TTF-1, TTF1)
  • Promoter hPGK
  • Tag / Fusion Protein
    • V5-linker-GFP (C terminal on insert)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Promoter from pLX-hPGK_NKX2-1 was rearranged with pLX-EF1a_NKX2-1_Short_V5-GFP to form fusion expression construct. 5' cloning site: EcoRI-HF (not destroyed), 3' cloning site: BmtI-HF (not destroyed).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLX-hPGK_NKX2-1_Short_V5-GFP was a gift from Matthew Meyerson (Addgene plasmid # 221498 ; http://n2t.net/addgene:221498 ; RRID:Addgene_221498)

  • For your References section:

    Dosage amplification dictates oncogenic regulation by the NKX2-1 lineage factor in lung adenocarcinoma. Pulice JL, Meyerson M. bioRxiv [Preprint]. 2023 Oct 27:2023.10.26.563996. doi: 10.1101/2023.10.26.563996. 10.1101/2023.10.26.563996 PubMed 37994369
