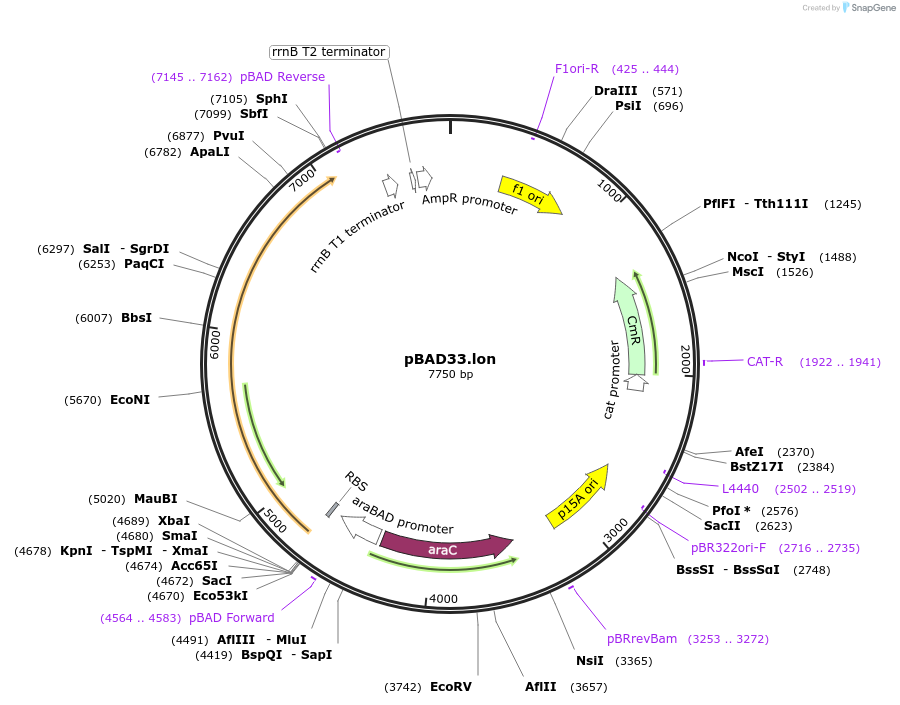

pBAD33.lon
(Plasmid #22145)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 22145 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBad33
  • Backbone manufacturer
    Beckwith Lab
  • Backbone size w/o insert (bp) 5400
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Lon
  • Alt name
    Protease La
  • Species
    E. coli K12
  • Insert Size (bp)
    2355
  • Mutation
    None, WT gene
  • GenBank ID
    EG10542
  • Entrez Gene
    lon (a.k.a. b0439, ECK0433, capR, deg, dir, lopA, muc)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Xbal (not destroyed)
  • 3′ cloning site SphI (not destroyed)
  • 5′ sequencing primer pBad-fwd
  • 3′ sequencing primer pBad-rev
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Eyal Gur
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD33.lon was a gift from Robert Sauer (Addgene plasmid # 22145 ; http://n2t.net/addgene:22145 ; RRID:Addgene_22145)
  • For your References section:

    Recognition of misfolded proteins by Lon, a AAA(+) protease. Gur E, Sauer RT. Genes Dev. 2008 Aug 15. 22(16):2267-77. 10.1101/gad.1670908 PubMed 18708584
