AAV hSyn mRuby
(Plasmid #220912)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 220912 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

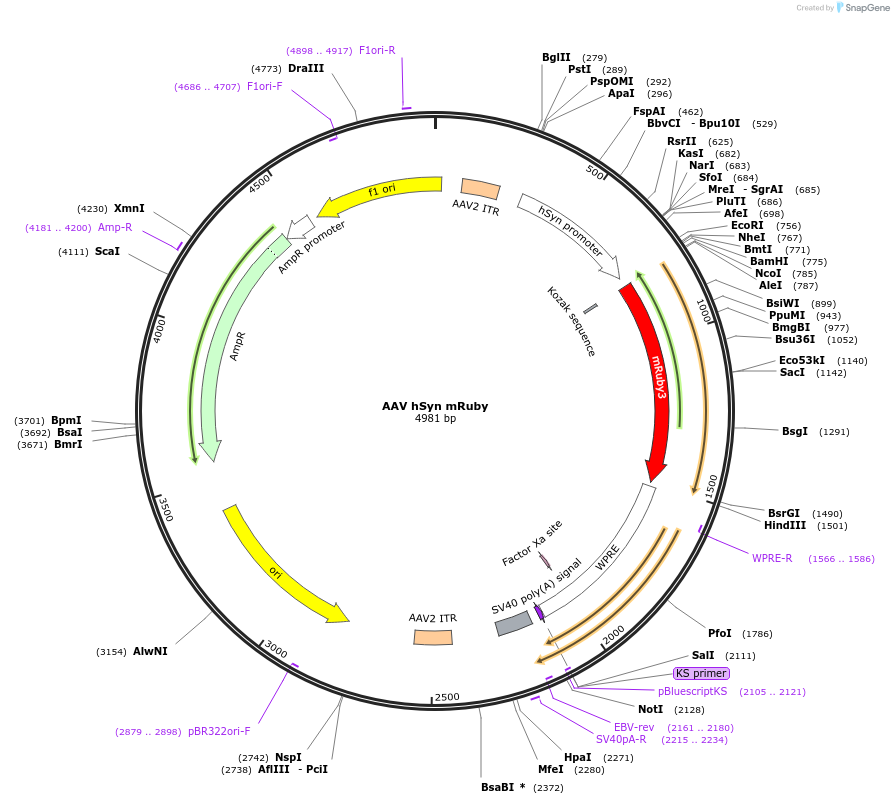

Backbone

  • Vector backbone
    pGP-AAV-syn
  • Backbone size w/o insert (bp) 4267
  • Total vector size (bp) 4981
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mRuby
  • Insert Size (bp)
    714
  • Promoter hSyn

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer hSyn-F
  • 3′ sequencing primer WPRE-R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2023.10.10.561760 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV hSyn mRuby was a gift from Timothy Ryan (Addgene plasmid # 220912 ; http://n2t.net/addgene:220912 ; RRID:Addgene_220912)

  • For your References section:

    Phosphoglycerate kinase is a central leverage point in Parkinson's disease-driven neuronal metabolic deficits. Kokotos AC, Antoniazzi AM, Unda SR, Ko MS, Park D, Eliezer D, Kaplitt MG, De Camilli P, Ryan TA. Sci Adv. 2024 Aug 23;10(34):eadn6016. doi: 10.1126/sciadv.adn6016. Epub 2024 Aug 21. 10.1126/sciadv.adn6016 PubMed 39167658
