pJMP8835
(Plasmid
#220902)
-

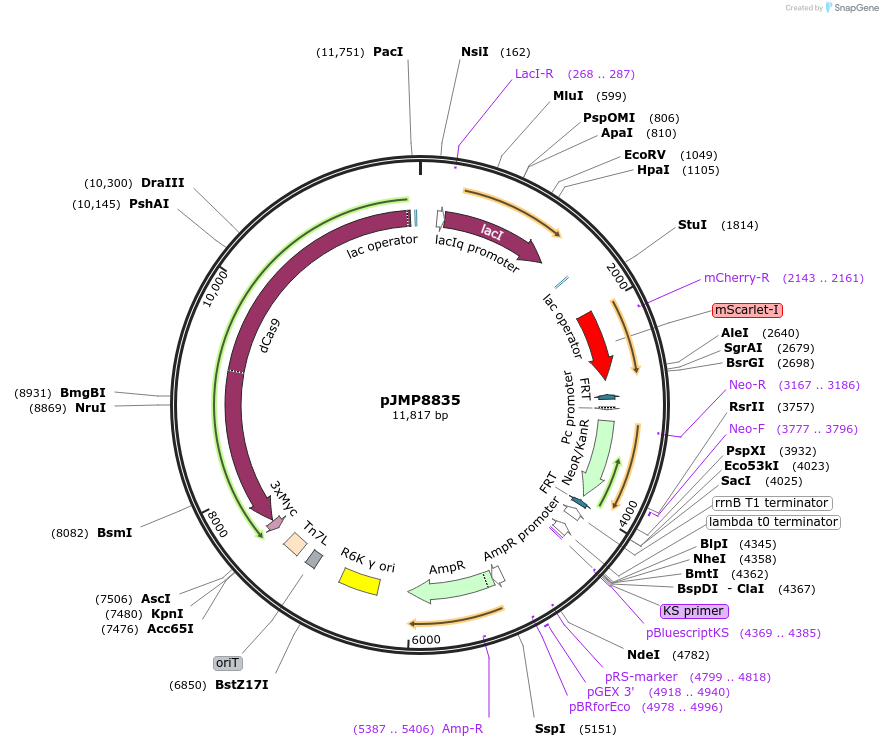

PurposeMobileCRiSPRi test system encoded on a kanR Tn7 transposon; mScarlet-I, PD-sgRNA (mscar targeting), and PG-dCas9-novo
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 220902 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneR6Kgamma
-
Vector typeBacterial Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)BW25141
-
Growth instructionsPlasmid contains both Ampicillin (backbone) and Kanamycin (transposon) resistance genes. Either antibiotic can be used for plasmid growth and propagation but for selection of downstream transposition events Kanamycin must be used.
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namedCas9-novo
-
gRNA/shRNA sequencePD-sgRNA (mscar targeting)
-
SpeciesS. pyogenes
-
MutationD10A, H840A
-
Tag
/ Fusion Protein
- 3xMyc (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Mobile-CRISPRi system optimized for alphaproteobacteria; needs to be grown in E. coli BW25141 (pir+ strain with an anti-CRISPR protein on the chromosome)
Please visit https://pubmed.ncbi.nlm.nih.gov/37662258/ for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJMP8835 was a gift from Jason Peters (Addgene plasmid # 220902 ; http://n2t.net/addgene:220902 ; RRID:Addgene_220902) -
For your References section:
Tools for genetic engineering and gene expression control in Novosphingobium aromaticivorans and Rhodobacter sphaeroides. Hall AN, Hall BW, Kinney KJ, Olsen GG, Banta AB, Noguera DR, Donohue TJ, Peters JM. Appl Environ Microbiol. 2024 Sep 26:e0034824. doi: 10.1128/aem.00348-24. 10.1128/aem.00348-24 PubMed 39324814
