pcDNA3.3−3xFLAG−AGO2(D669A)
(Plasmid
#220461)
-
PurposeExpress catalytically-dead mutant human AGO2 with N-terminal 3xFLAG tag in mammalian cells
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 220461 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

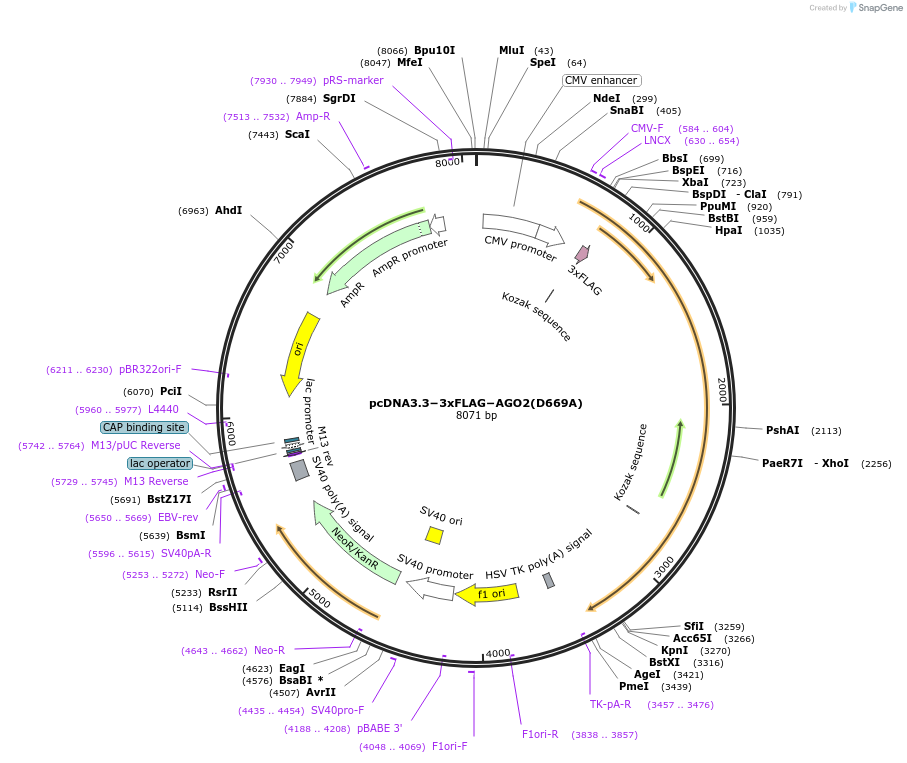

Backbone
-
Vector backbonepcDNA3.3
- Total vector size (bp) 8071
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHuman AGO2
-
Alt nameArgonaute2
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2658
-
MutationAspartate 669 to alanine
-
Entrez GeneAGO2 (a.k.a. CASC7, EIF2C2, LESKRES, LINC00980, PPD, Q10)
- Promoter CMV
-
Tag
/ Fusion Protein
- 3xFLAG (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer ACTCTAGAGGATCGAACCCTTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2023.10.15.562437 for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.3−3xFLAG−AGO2(D669A) was a gift from David Bartel (Addgene plasmid # 220461 ; http://n2t.net/addgene:220461 ; RRID:Addgene_220461) -
For your References section:
The guide-RNA sequence dictates the slicing kinetics and conformational dynamics of the Argonaute silencing complex. Wang PY, Bartel DP. Mol Cell. 2024 Jul 10:S1097-2765(24)00533-1. doi: 10.1016/j.molcel.2024.06.026. 10.1016/j.molcel.2024.06.026 PubMed 39025072
