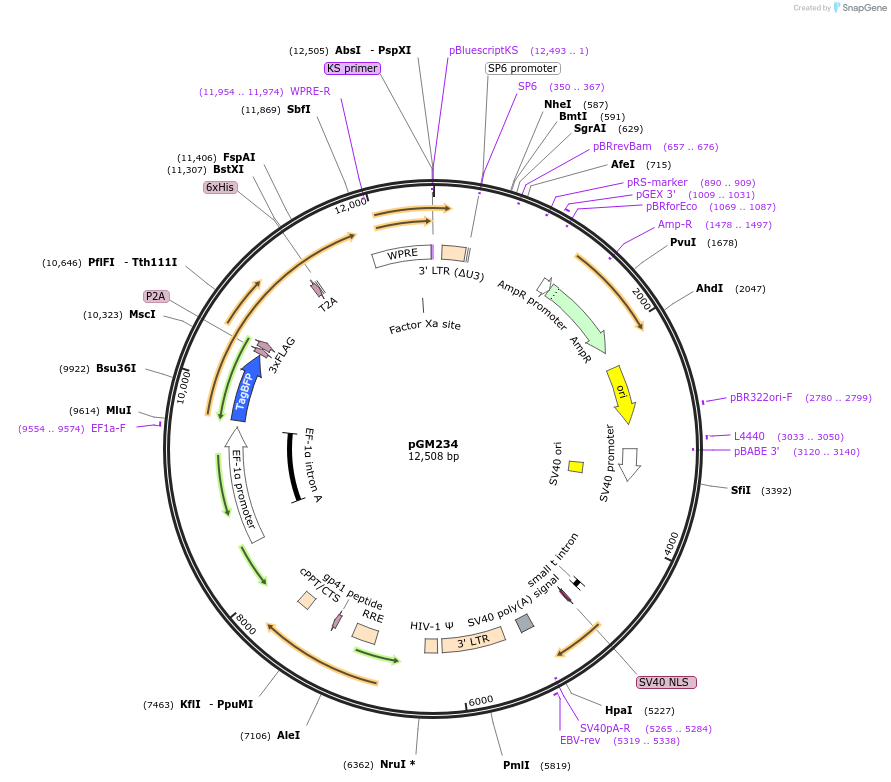

pGM234
(Plasmid #220177)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 220177 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    MH0006
  • Vector type
    Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NACA and BTF3
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1395
  • Entrez Gene
    NACA (a.k.a. HSD48, NAC-alpha, NACA1, skNAC)
  • Entrez Gene
    BTF3 (a.k.a. BETA-NAC, BTF3a, BTF3b, NACB)
  • Tag / Fusion Protein
    • 3xFLAG (NACA); 6xHis (BTF3) (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGM234 was a gift from Jonathan Weissman (Addgene plasmid # 220177 ; http://n2t.net/addgene:220177 ; RRID:Addgene_220177)

  • For your References section:

    Triaging of alpha-helical proteins to the mitochondrial outer membrane by distinct chaperone machinery based on substrate topology. Muthukumar G, Stevens TA, Inglis AJ, Esantsi TK, Saunders RA, Schulte F, Voorhees RM, Guna A, Weissman JS. Mol Cell. 2024 Mar 21;84(6):1101-1119.e9. doi: 10.1016/j.molcel.2024.01.028. Epub 2024 Feb 29. 10.1016/j.molcel.2024.01.028 PubMed 38428433
