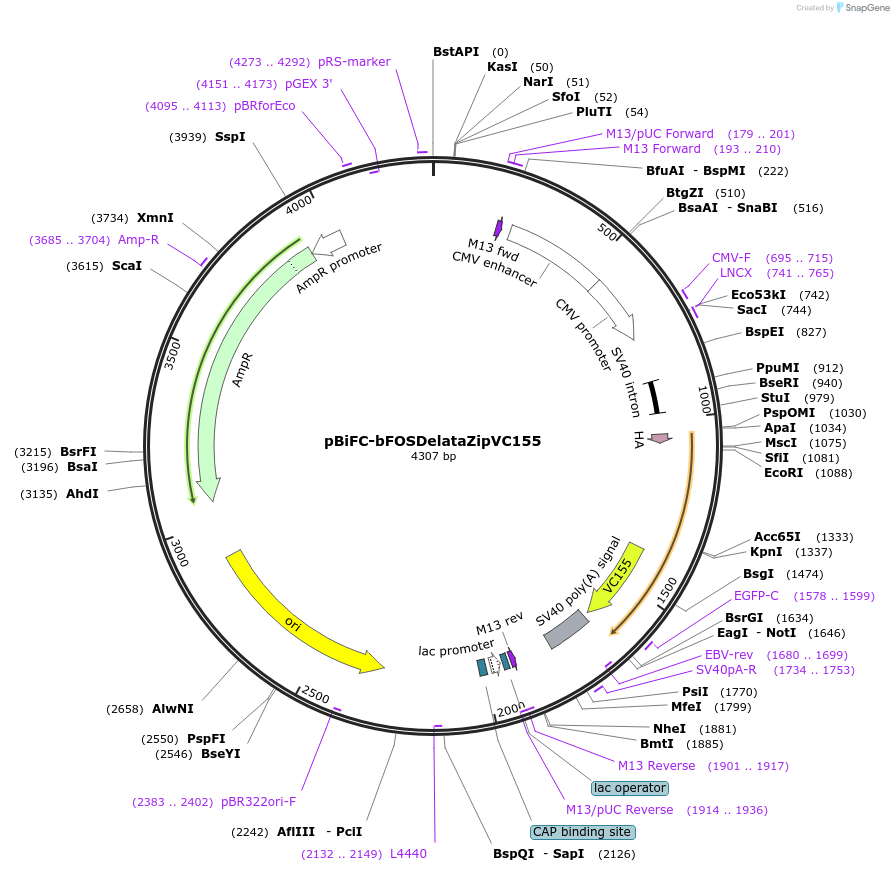

pBiFC-bFOSDelataZipVC155
(Plasmid #22014)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 22014 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCMV-HA
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3756
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    bFosDelataZIPVC155
  • Species
    R. norvegicus (rat); Aequorea Victoria
  • Insert Size (bp)
    551
  • Mutation
    deletion of residues 179-193 in bFos(118-211)
  • Tag / Fusion Protein
    • HA (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer EBV-Rev
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBiFC-bFOSDelataZipVC155 was a gift from Chang-Deng Hu (Addgene plasmid # 22014 ; http://n2t.net/addgene:22014 ; RRID:Addgene_22014)

  • For your References section:

    Identification of new fluorescent protein fragments for bimolecular fluorescence complementation analysis under physiological conditions. Shyu YJ, Liu H, Deng X, Hu CD. Biotechniques. 2006 Jan . 40(1):61-6. 10.2144/000112036 PubMed 16454041
