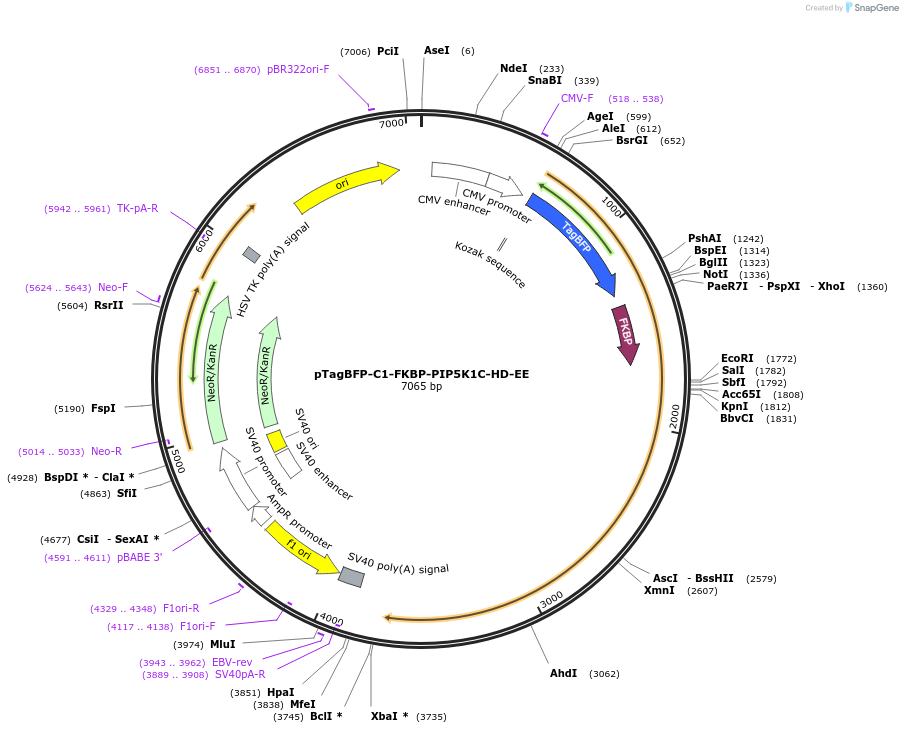

pTagBFP-C1-FKBP-PIP5K1C-HD-EE
(Plasmid #220090)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 220090 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pTagBFP-C1
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PIP5K1C
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1924
  • Mutation
    amino acids 1-635; D101R, R304D, R445E, K446E
  • Entrez Gene
    PIP5K1C (a.k.a. LCCS3, PIP5K-GAMMA, PIP5K1-gamma, PIP5Kgamma)
  • Promoter CMV
  • Tag / Fusion Protein
    • TagBFP-FKBP1A(3-108) (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Dr. Rachel Wills, University of Pittsburgh, PA

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTagBFP-C1-FKBP-PIP5K1C-HD-EE was a gift from Gerry Hammond (Addgene plasmid # 220090 ; http://n2t.net/addgene:220090 ; RRID:Addgene_220090)

  • For your References section:

    Nir1-LNS2 is a novel phosphatidic acid biosensor that reveals mechanisms of lipid production. Weckerly CC, Rahn TA, Ehrlich M, Wills RC, Pemberton JG, Airola MV, Hammond GRV. bioRxiv [Preprint]. 2024 Feb 28:2024.02.28.582557. doi: 10.1101/2024.02.28.582557. 10.1101/2024.02.28.582557 PubMed 38464273
