pXR004_puroR
(Plasmid
#219820)
-
Purpose(Empty Backbone) hU6-driven pre-gRNA plasmid for CasRx applications with puromycin resistance. 5' processed DR followed by BbsI sites for guide cloning (Adapted from plasmid #10954)
-
Depositing Lab
-

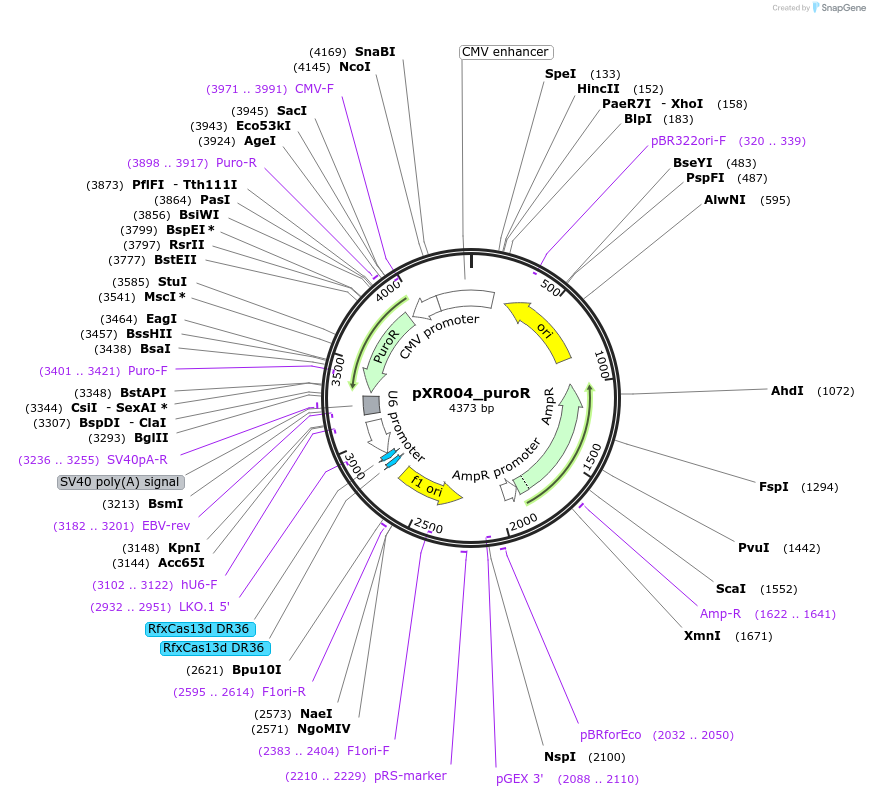

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 219820 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepXR004 (Addgene #109054)
- Backbone size (bp) 3000
-
Modifications to backboneaddition of puromycin resistance
-
Vector typeMammalian Expression, CRISPR
- Promoter hU6
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer U6 (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pXR004_puroR was a gift from Philipp Maass (Addgene plasmid # 219820 ; http://n2t.net/addgene:219820 ; RRID:Addgene_219820)
