pNK7187
(Plasmid
#219761)
-
PurposeMoClo-compatible Level 1 for expression PpASCL in plants (N.benthamiana, BY2 cells)
-
Depositing Lab
-

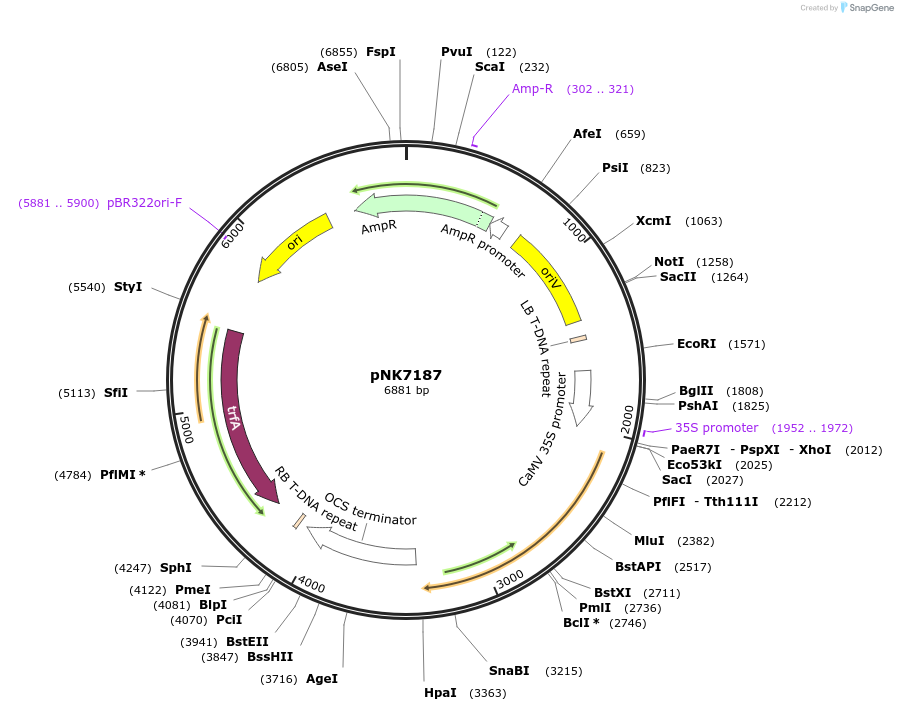

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 219761 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneMoClo Level 1 (MoClo Toolkit)
- Backbone size w/o insert (bp) 5618
-
Vector typePlant Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePpASCL
-
SpeciesPhyscomitrella patens
-
Insert Size (bp)1263
- Promoter p35s_0.4kb - 5'UTR TMV omega
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pNK7187 was a gift from Karen Sarkisyan (Addgene plasmid # 219761 ; http://n2t.net/addgene:219761 ; RRID:Addgene_219761) -
For your References section:
A hybrid pathway for self-sustained luminescence. Palkina KA, Karataeva TA, Perfilov MM, Fakhranurova LI, Markina NM, Somermeyer LG, Garcia-Perez E, Vazquez-Vilar M, Rodriguez-Rodriguez M, Vazquez-Vilriales V, Shakhova ES, Mitiouchkina T, Belozerova OA, Kovalchuk SI, Alekberova A, Malyshevskaia AK, Bugaeva EN, Guglya EB, Balakireva A, Sytov N, Bezlikhotnova A, Boldyreva DI, Babenko VV, Kondrashov FA, Choob VV, Orzaez D, Yampolsky IV, Mishin AS, Sarkisyan KS. Sci Adv. 2024 Mar 8;10(10):eadk1992. doi: 10.1126/sciadv.adk1992. Epub 2024 Mar 8. 10.1126/sciadv.adk1992 PubMed 38457503
