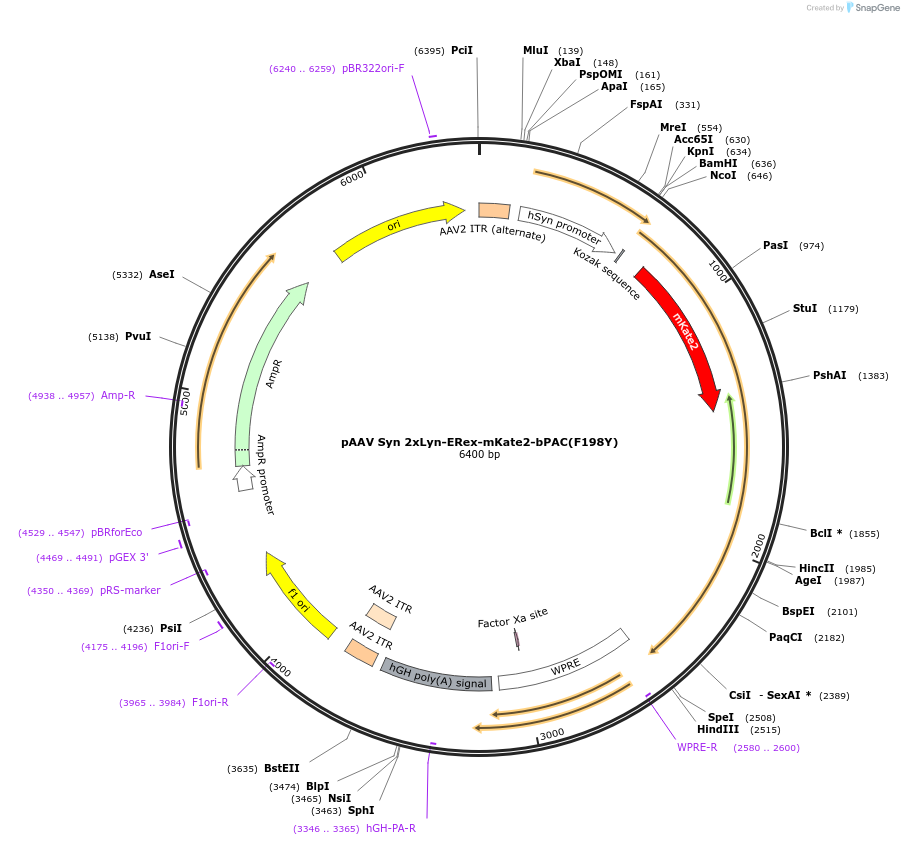

pAAV Syn 2xLyn-ERex-mKate2-bPAC(F198Y)
(Plasmid #219654)

• Purpose: Neuronal expression of PACmn with mKate2, a membrane targeted version of the photoactivatable adenylyl cyclase from Beggiatoa with lowered dark activity.
• Depositing Lab: Thomas Oertner
• Publication: cAMP in synaptic plasticity (unpublished)

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

Backbone

• Vector backbone: pAAV
• Backbone manufacturer: Stratagene (Agilent)
• Vector type: Mammalian Expression, AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: 2xLyn-ERex-mKate2-bPAC(F198Y)
• Alt name: PACmn
• Species: H. sapiens (human), Synthetic; Aequoria victoria/Beggiatoa
• Insert Size (bp): 1860
• Promoter: Syn
• Tags / Fusion Proteins:
  • Lyn11 (GCIKSKGKDS) (N terminal on insert)
  • ER exit ( FCYENE) (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: HindIII (not destroyed)
• 5′ sequencing primer: GACTCAGCGCTGCCTCAGTCTG
• 3′ sequencing primer: GGCATTAAAGCAGCGTATCC

Resource Information

• Supplemental Documents:
  • pAAV Syn 2xLyn-ERex-mKate2-bPAC(F198Y).gb

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Evrogen Limited Use Label License for FPs
• Industry Terms:
  • Not Available to Industry

Depositor Comments

This plasmid is identical to #165491 but with mKate2 ( Far-red fluorescent protein) (Evrogen), the insert was assembled in the lab of Georg Nagel.

Please visit https://doi.org/10.1101/2024.02.16.580703 for bioRxiv preprint.
