Cas12aUltra_5XNLS
(Plasmid
#218775)
-
PurposeHis-TEV-Cas12aUltra-BPSV40_cMyc_NP_5NLS
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 218775 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

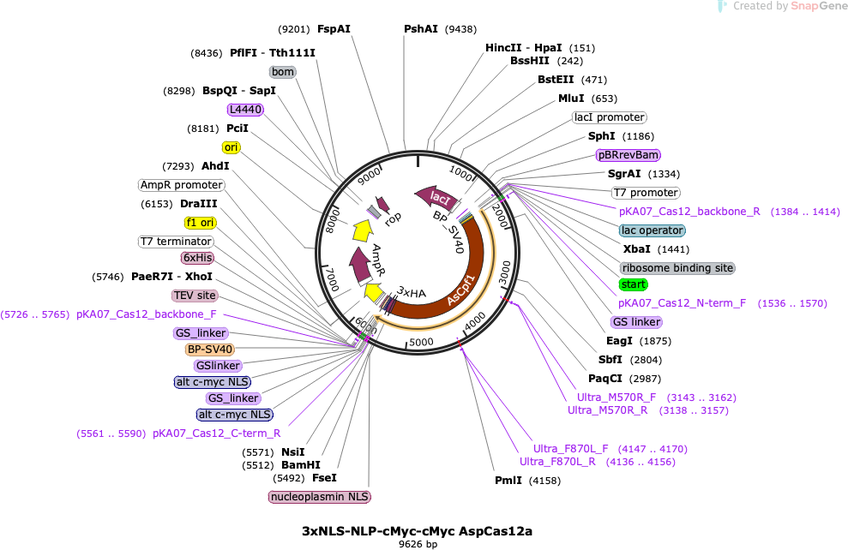

Vector backbone3xNLS-NLP-cMyc-cMyc AspCas12a
- Backbone size w/o insert (bp) 5443
- Total vector size (bp) 9626
-
Modifications to backboneAddition of bipartite SV40 nuclear localization signals (NLS) at the -N and -C termini of Cas12 expressing gene, change in c-myc NLS sequence at the C-terminus of the Cas12 expressing gene
-
Vector typeBacterial Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert name5xNLS-BPSV40-NLP-cMyc-cMyc-BPSV40- AspCas12a
-
Alt nameCas12a ultra 5NLS
-
SpeciesAcidaminococcus
-
Insert Size (bp)4287
-
MutationNucleotides mutations were made to encode for arginine at position 537 and leucine at position 870 of the Cas12 protein
-
Tags
/ Fusion Proteins
- 6XHis (C terminal) (C terminal on insert)
- HA (C terminal on insert)
- SV40 (C terminal on insert)
- Nucleoplasmin (C terminal on insert)
- c-myc NLS (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer T7 terminator (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byPlasmid 3xNLS-NLP-cMyc-cMyc AspCas12a was purchased from Addgene (plasmid #182122 from Scot Wolfe, RRID:Addgene_182122)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2024.07.14.603391 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Cas12aUltra_5XNLS was a gift from Ross Wilson (Addgene plasmid # 218775 ; http://n2t.net/addgene:218775 ; RRID:Addgene_218775) -
For your References section:
Peptide-enabled ribonucleoprotein delivery for CRISPR engineering (PERC) in primary human immune cells and hematopoietic stem cells. Sahu SU, Castro M, Muldoon JJ, Asija K, Wyman SK, Krishnappa N, Eyquem J, Nguyen DN, Wilson RC. bioRxiv 2024.07.14.603391 10.1101/2024.07.14.603391
