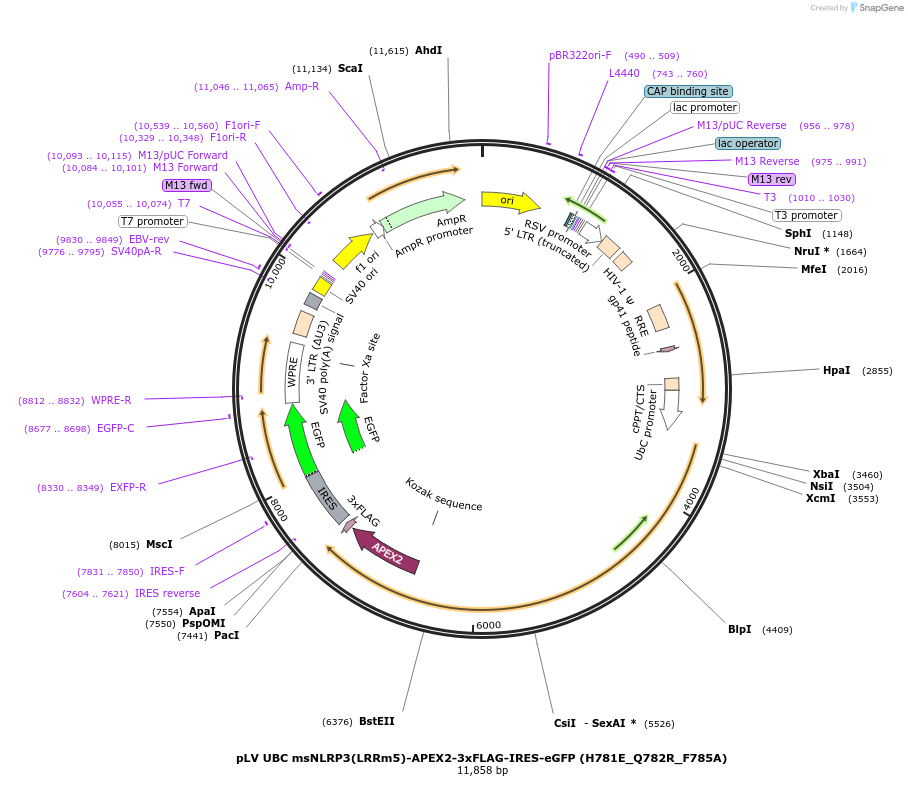

pLV UBC msNLRP3(LRRm5)-APEX2-3xFLAG-IRES-eGFP (H781E_Q782R_F785A)
(Plasmid #218636)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 218636 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLV UBC
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    GFP

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NLRP3
  • Species
    M. musculus (mouse)
  • Mutation
    H781E, Q782R, F785A
  • Entrez Gene
    Nlrp3 (a.k.a. AGTAVPRL, AII/AVP, Cias1, FCAS, FCU, MWS, Mmig1, NALP3, Pypaf1)
  • Promoter UBC
  • Tag / Fusion Protein
    • APEX2-3xFLAG (C terminal on insert)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Additional data, code, and other details related to this work (Hollingsworth et al. 2024) are available at https://harperlab.pubpub.org/pub/nlrp3/.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLV UBC msNLRP3(LRRm5)-APEX2-3xFLAG-IRES-eGFP (H781E_Q782R_F785A) was a gift from Wade Harper (Addgene plasmid # 218636 ; http://n2t.net/addgene:218636 ; RRID:Addgene_218636)

  • For your References section:

    Spatiotemporal proteomic profiling of cellular responses to NLRP3 agonists. Hollingsworth LR, Veeraraghavan P, Paulo JA, Harper JW. bioRxiv 2024.04.19.590338 10.1101/2024.04.19.590338
