pJJB1559
(Plasmid #218590)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 218590 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    TMP138
  • Backbone manufacturer
    Internal
  • Vector type
    Yeast Expression
  • Selectable markers
    URA3

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GES
  • Alt name
    Geraniol synthase
  • Species
    S. cerevisiae (budding yeast); Valeriana officinalis
  • Mutation
    Erg20(F96W, N127W), Erg20-Erg20 synthetic homodimer fusion
  • Tag / Fusion Protein
    • ePTS1 (C terminal on insert)

Cloning Information

  • Cloning method Golden Gate

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

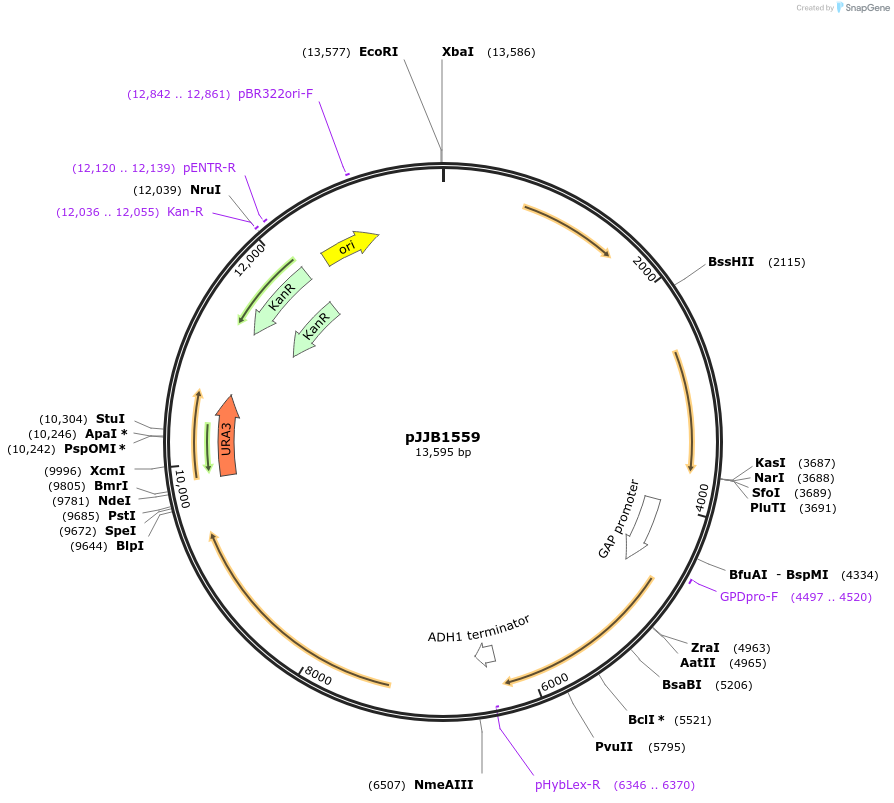

Also expresses Idi1 and a mutant Erg20 (F96W, N127W) from Saccharomyces cerevisiae. Idi1, Erg20(F96W, N127W), and GES are targeted to the peroxisome with ePTS1. This plasmid also expresses a cytosolic, WT Erg20 synthetic homodimer in which two WT versions of the Erg20 gene are combined onto one transcript with a 6x serine-glycine linker. Integrated into the URA3 locus.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJJB1559 was a gift from John Dueber (Addgene plasmid # 218590 ; http://n2t.net/addgene:218590 ; RRID:Addgene_218590)
