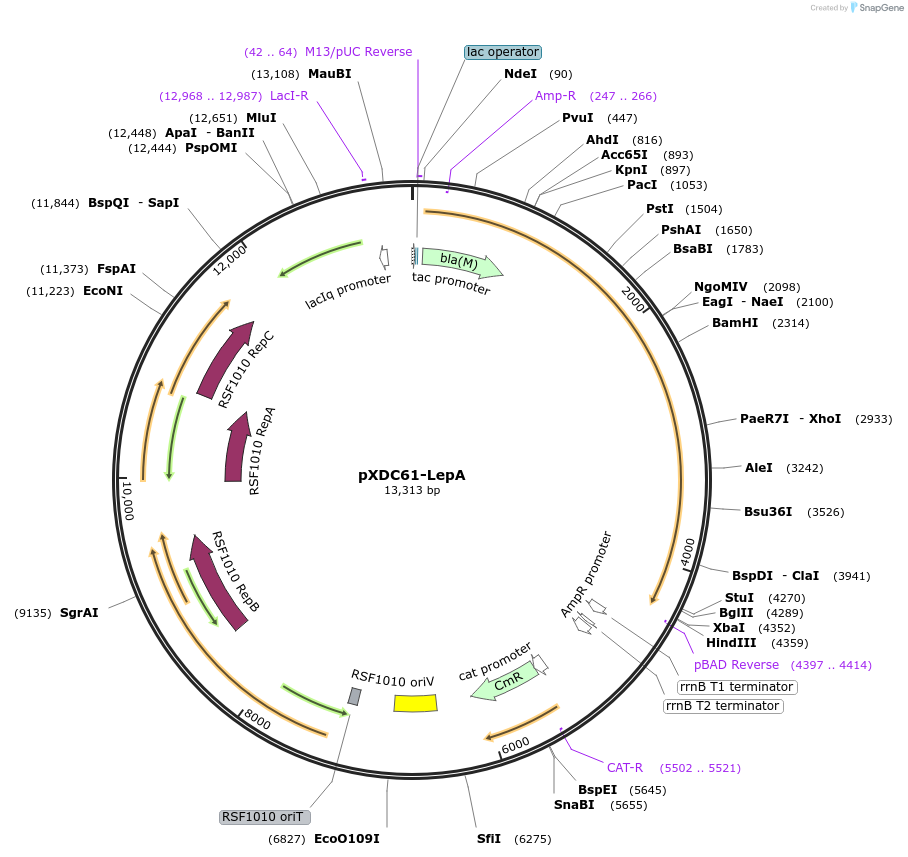

pXDC61-LepA
(Plasmid #21843)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 21843 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pXDC61
  • Backbone size w/o insert (bp) 9869
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    LepA
  • Species
    L. pneumophila
  • Insert Size (bp)
    3455
  • GenBank ID
    NC_002942
  • Entrez Gene
    lepA
  • Tag / Fusion Protein
    • TEM (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer GAGCTGTTGACAATTAATCATCGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pXDC61-LepA was a gift from Howard Shuman (Addgene plasmid # 21843 ; http://n2t.net/addgene:21843 ; RRID:Addgene_21843)

  • For your References section:

    Chemical genetics reveals bacterial and host cell functions critical for type IV effector translocation by Legionella pneumophila. Charpentier X, Gabay JE, Reyes M, Zhu JW, Weiss A, Shuman HA. PLoS Pathog. 2009 Jul . 5(7):e1000501. 10.1371/journal.ppat.1000501 PubMed 19578436
