SREC 2: abu-1::abu-1::gfp
(Plasmid
#21825)
-
Depositing Lab
-
Publication
-

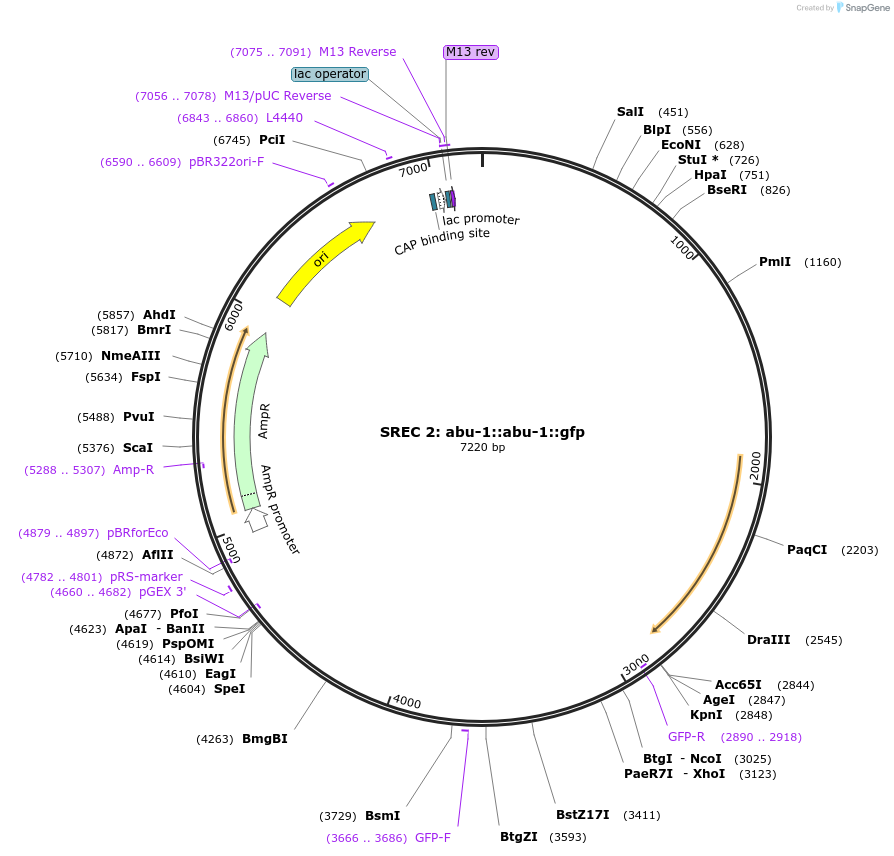

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 21825 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepPD95_75
-
Backbone manufacturerAvailable at Addgene (#1494)
- Backbone size w/o insert (bp) 4487
-
Vector typeWorm Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameabu-1 promoter and coding region
-
Alt nameAC3.3
-
Alt nameabu1
-
SpeciesC. elegans (nematode)
-
Insert Size (bp)2700
-
Entrez Geneabu-1
-
Tag
/ Fusion Protein
- GFP (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer M13r (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made bypPD95.75 was a gift from Dr. Andy Fire
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Addgene sequencing results show there is a S408P substitution in amino acid sequence in the coding region.
abu-1::abu-1::gfp C. elegans reporter gene. The promoter and coding region of abu-1 was ligated in frame with GFP to produce abu1::abu-1::gfp
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
SREC 2: abu-1::abu-1::gfp was a gift from David Ron (Addgene plasmid # 21825 ; http://n2t.net/addgene:21825 ; RRID:Addgene_21825) -
For your References section:
A survival pathway for Caenorhabditis elegans with a blocked unfolded protein response. Urano F, Calfon M, Yoneda T, Yun C, Kiraly M, Clark SG, Ron D. J Cell Biol. 2002 Aug 19. 158(4):639-46. 10.1083/jcb.200203086 PubMed 12186849
