Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 21817 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepGEX-4T-1
-
Backbone manufacturerAmersham
- Backbone size w/o insert (bp) 5000
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)Stbl2
-
Growth instructionsWe have found that the PERK cDNA confers instability (low replication ability) to plasmids. The plasmid will be provided in the STBL2 bacterial strain (gibco) which helps alleviate this problem. To recover the plasmid, stick a sterile toothpick into the stab and streak on an LB amp plate and grow at 30C. Pick an individual colony and grow in LB amp at 30C for the highest yield of plasmid.
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namePERK (537-1114)
-
Alt nameEif2ak3 eukaryotic translation initiation factor 2 alpha kinase 3
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)1700
-
MutationPERK Kinase Domain. Amino acids 537-1114.
-
Entrez GeneEif2ak3 (a.k.a. Pek, Perk)
-
Tags
/ Fusion Proteins
- GST (N terminal on backbone)
- Myc (9E10) (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SalI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer pGEX-F (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

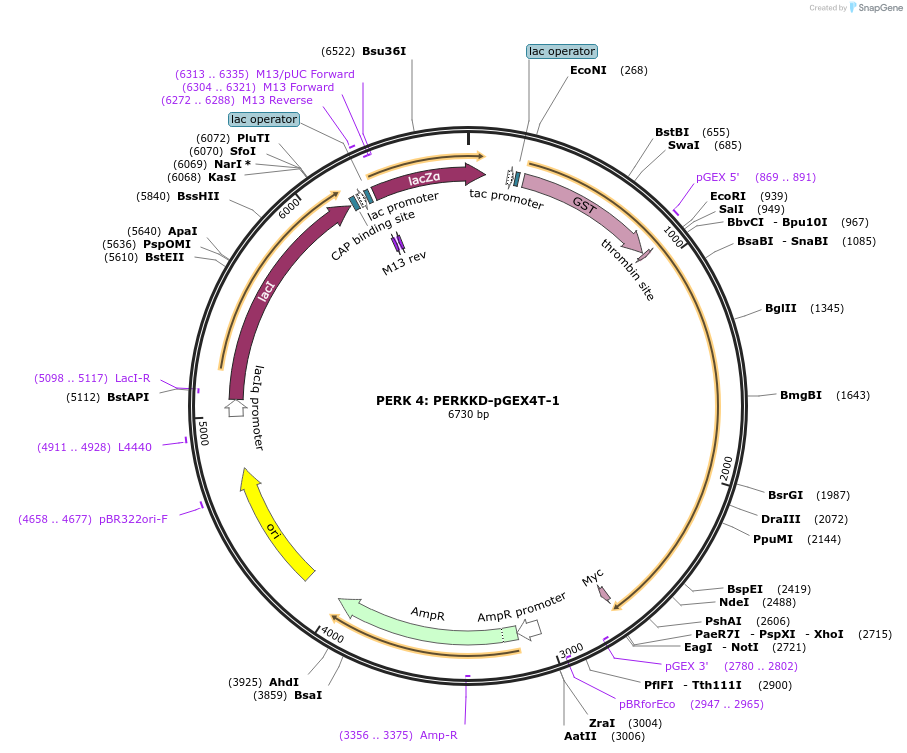

Mouse PERK (537-1114), wild-type, 9E10-tagged at C-terminus, fused to GST, bacterial expression vector, pGEX4T-1
Sequencing found a S1109T mutation. There is no evidence that the mutation affects activity.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
PERK 4: PERKKD-pGEX4T-1 was a gift from David Ron (Addgene plasmid # 21817 ; http://n2t.net/addgene:21817 ; RRID:Addgene_21817) -
For your References section:
Protein translation and folding are coupled by an endoplasmic-reticulum-resident kinase. Harding HP, Zhang Y, Ron D. Nature. 1999 Jan 21. 397(6716):271-4. 10.1038/16729 PubMed 9930704
