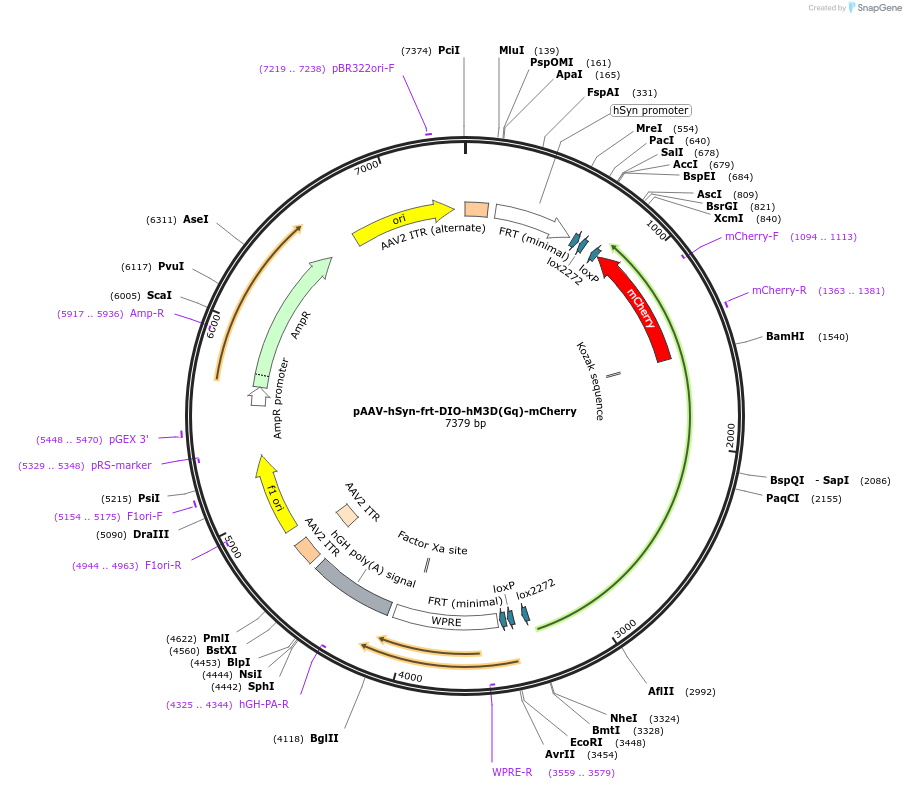

pAAV-hSyn-frt-DIO-hM3D(Gq)-mCherry
(Plasmid #217397)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 217397 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 4916
  • Total vector size (bp) 7431
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hM3D(Gq)-mCherry
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2508
  • Promoter human Synapsin 1
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Asc I (not destroyed)
  • 3′ cloning site Nhe I (not destroyed)
  • 5′ sequencing primer tcgtgtcgtgcctgagagcg
  • 3′ sequencing primer GCATTAAAGCAGCGTATCCACATAGC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Created by inserting hM3D(Gq)-mCherry in the pAAV-hSyn-frt-DIO-hM4D(Gi)-mCherry plasmid from this paper (Addgene Plasmid #XXXXX)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-hSyn-frt-DIO-hM3D(Gq)-mCherry was a gift from Oscar Marin (Addgene plasmid # 217397 ; http://n2t.net/addgene:217397 ; RRID:Addgene_217397)
