MEK1-K57N-V5
(Plasmid #217300)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 217300 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

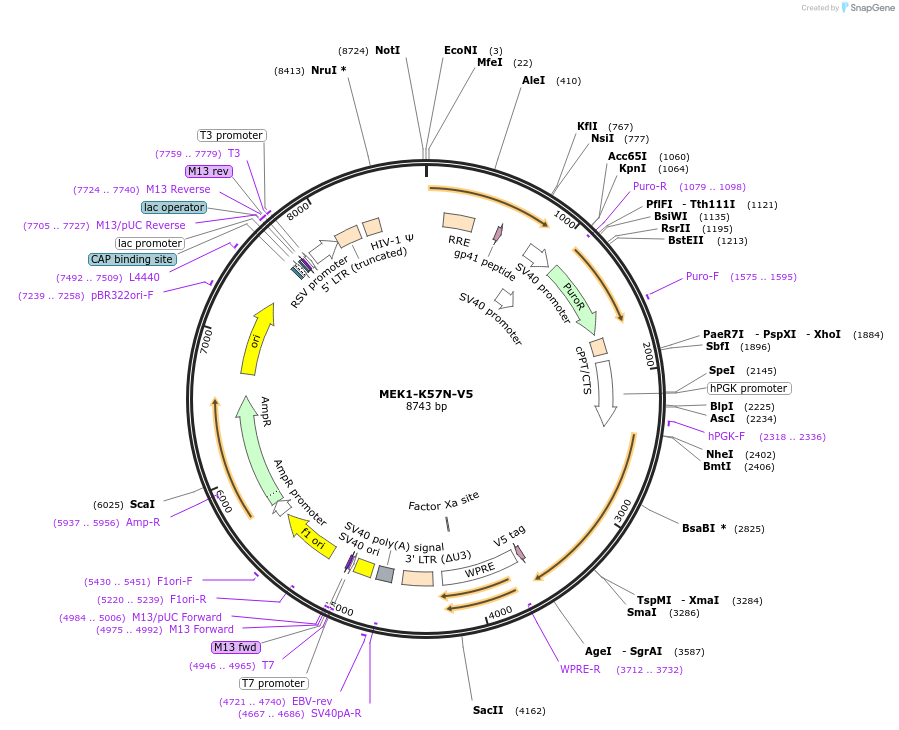

Backbone

  • Vector backbone
    pCW107-V5
  • Backbone size w/o insert (bp) 7565
  • Vector type
    Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MAP2K1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1179
  • Mutation
    K57N
  • Entrez Gene
    MAP2K1 (a.k.a. CFC3, MAPKK1, MEK1, MEL, MKK1, PRKMK1)
  • Tag / Fusion Protein
    • V5 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NHE1 (not destroyed)
  • 3′ cloning site AGE1 (not destroyed)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    MEK1-K57N-V5 was a gift from Channing Der (Addgene plasmid # 217300 ; http://n2t.net/addgene:217300 ; RRID:Addgene_217300)
