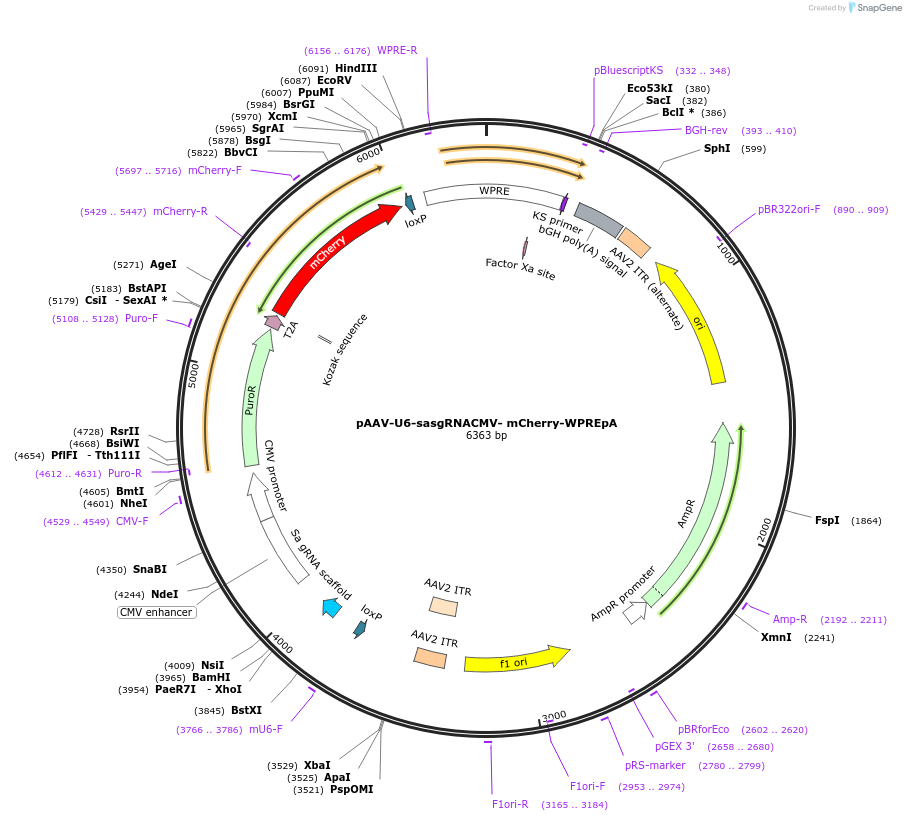

pAAV-U6-sasgRNACMV- mCherry-WPREpA
(Plasmid #217015)

• Purpose: S. aureus sgRNAs backbone along with mCherry expression
• Depositing Lab: Nadav Ahituv
• Publication: Matharu et al Science. 2018 Dec 13. pii: science.aau0629. doi: 10.1126/science.aau0629.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

Backbone

• Vector backbone: pAAVCMV- sadCas9-VP64-pA
• Total vector size (bp): 4963
• Vector type: Mammalian Expression, AAV, CRISPR

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: mCherry
• gRNA/shRNA sequence: None
• Species: Discosoma sea anemones
• Promoter: CMV

Cloning Information

• Cloning method: Gibson Cloning
• 5′ sequencing primer: T7
• 3′ sequencing primer: T3

Resource Information

• A portion of this plasmid was derived from a plasmid made by: pAAV-U6-sasgRNACMV-mCherry-WPREpA was cloned by replacing the CMV-sadCas9-VP64-pA cassette in pAAVCMV-sadCas9-VP64-pA backbone with that of U6-sasgRNA-CMV-mCHerry-WPREpA cassette from pLTR-1120-MP177-U6-sasgRNA-mcherry (a kind gift from B. Huang at UCSF).

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry

Depositor Comments

S. aureus sgRNAs can be cloned using the In-Fusion HD-cloning kit (Clontech) into the Bst XI and Xho I
restriction enzyme sites.
