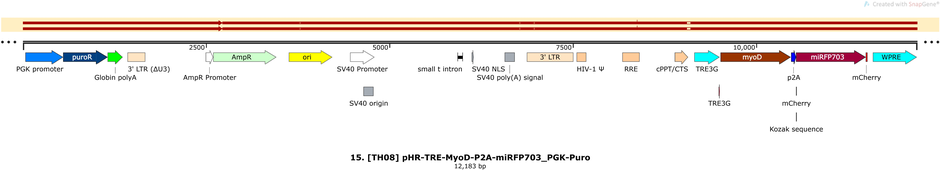

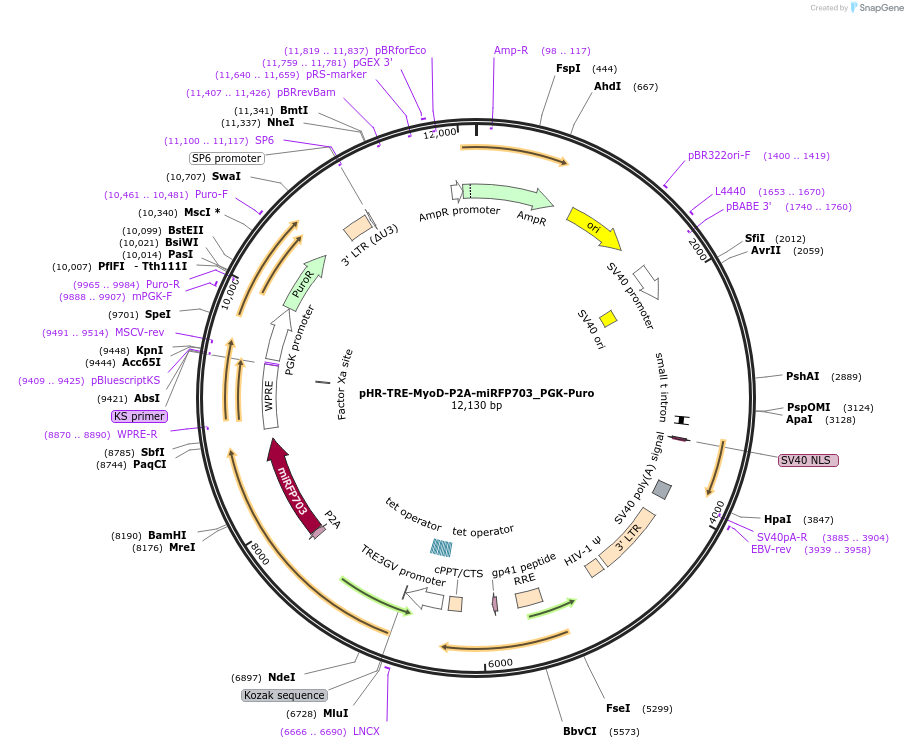

pHR-TRE-MyoD-P2A-miRFP703_PGK-Puro
(Plasmid #216666)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 216666 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHR
  • Backbone size w/o insert (bp) 9591
  • Total vector size (bp) 12183
  • Vector type
    Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    MyoD
  • Alt name
    MyoD1
  • Alt name
    myogenic differentiation 1
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1062
  • GenBank ID
    NM_010866.2
  • Entrez Gene
    Myod1 (a.k.a. MYF3, MyoD, Myod-1, bHLHc1)

Gene/Insert 2

  • Gene/Insert name
    miRFP703
  • Insert Size (bp)
    972

Gene/Insert 3

  • Gene/Insert name
    PuroR
  • Insert Size (bp)
    1360

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHR-TRE-MyoD-P2A-miRFP703_PGK-Puro was a gift from Leonardo Morsut (Addgene plasmid # 216666 ; http://n2t.net/addgene:216666 ; RRID:Addgene_216666)
