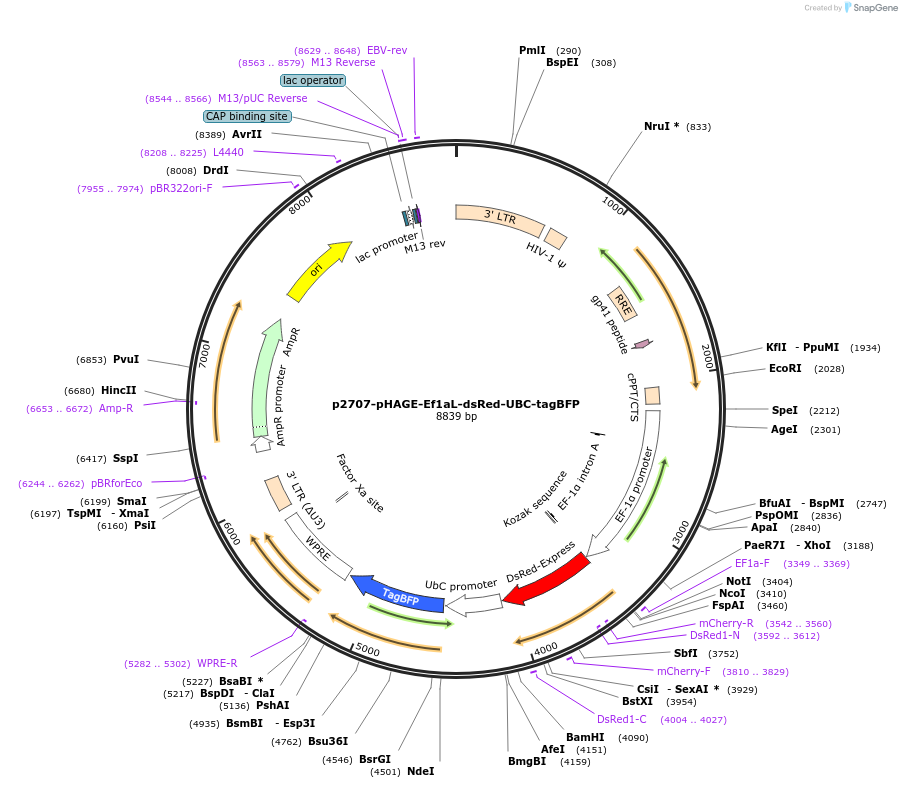

p2707-pHAGE-Ef1aL-dsRed-UBC-tagBFP
(Plasmid #216476)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 216476 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHAGE
  • Backbone manufacturer
    Darrell Kotton
  • Total vector size (bp) 8839
  • Vector type
    Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    dsRed
  • Species
    Discosoma coral
  • Insert Size (bp)
    679
  • Promoter EF1aL

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer n/a
  • 3′ sequencing primer n/a
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    tagBFP
  • Species
    Synthetic
  • Insert Size (bp)
    702
  • Promoter UBC

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site ClaI (not destroyed)
  • 5′ sequencing primer acgaatccatatggccatgagcgagctgattaagg
  • 3′ sequencing primer ttcaatcgatatcctttaattaagcttgtgccccag
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p2707-pHAGE-Ef1aL-dsRed-UBC-tagBFP was a gift from Darrell Kotton (Addgene plasmid # 216476 ; http://n2t.net/addgene:216476 ; RRID:Addgene_216476)

  • For your References section:

    Generation of human alveolar epithelial type I cells from pluripotent stem cells. Burgess CL, Huang J, Bawa PS, Alysandratos KD, Minakin K, Ayers LJ, Morley MP, Babu A, Villacorta-Martin C, Yampolskaya M, Hinds A, Thapa BR, Wang F, Matschulat A, Mehta P, Morrisey EE, Varelas X, Kotton DN. Cell Stem Cell. 2024 Apr 15:S1934-5909(24)00098-5. doi: 10.1016/j.stem.2024.03.017. 10.1016/j.stem.2024.03.017 PubMed 38642558
